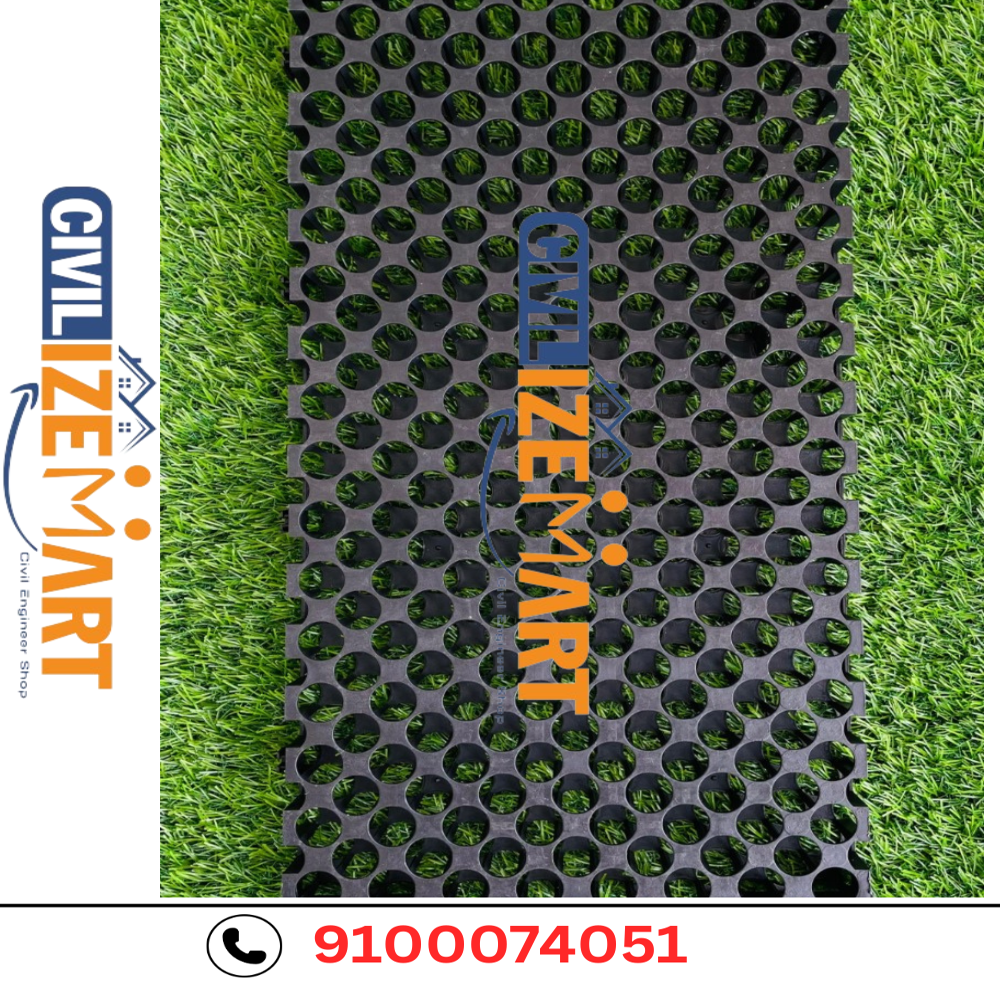

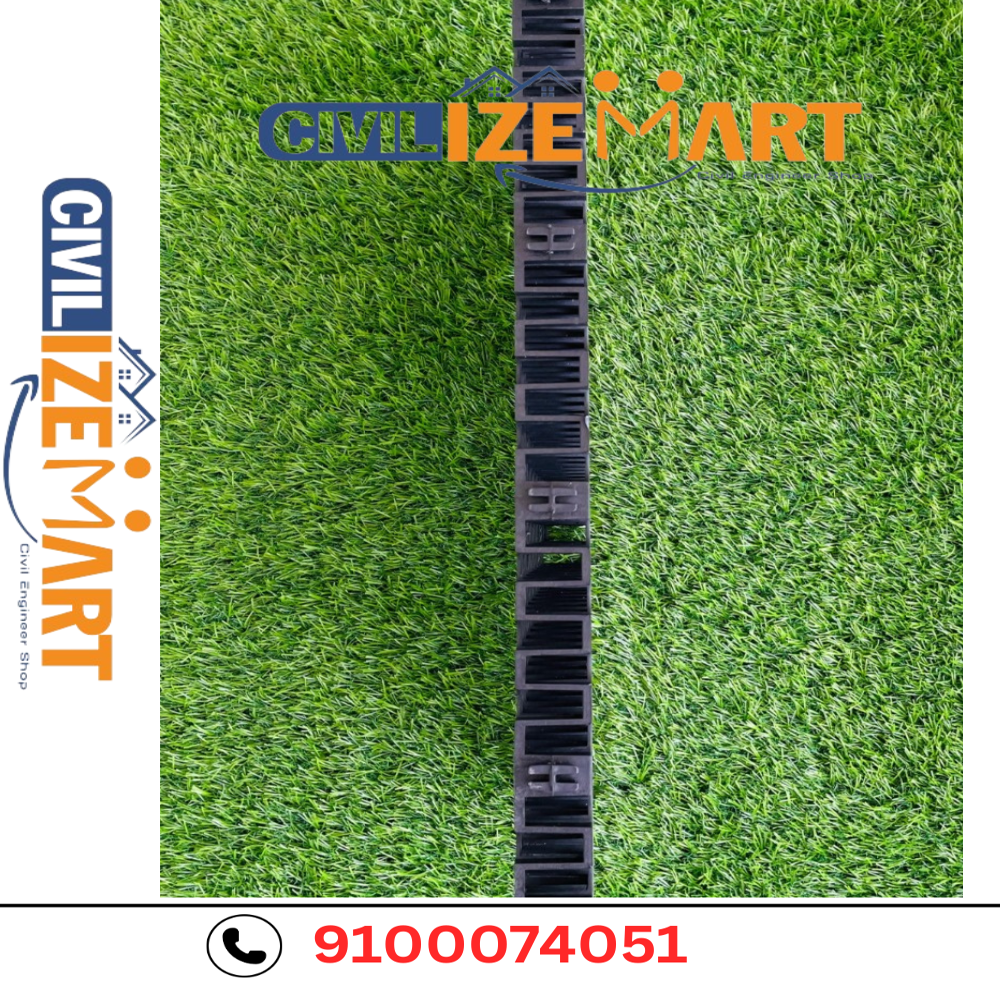

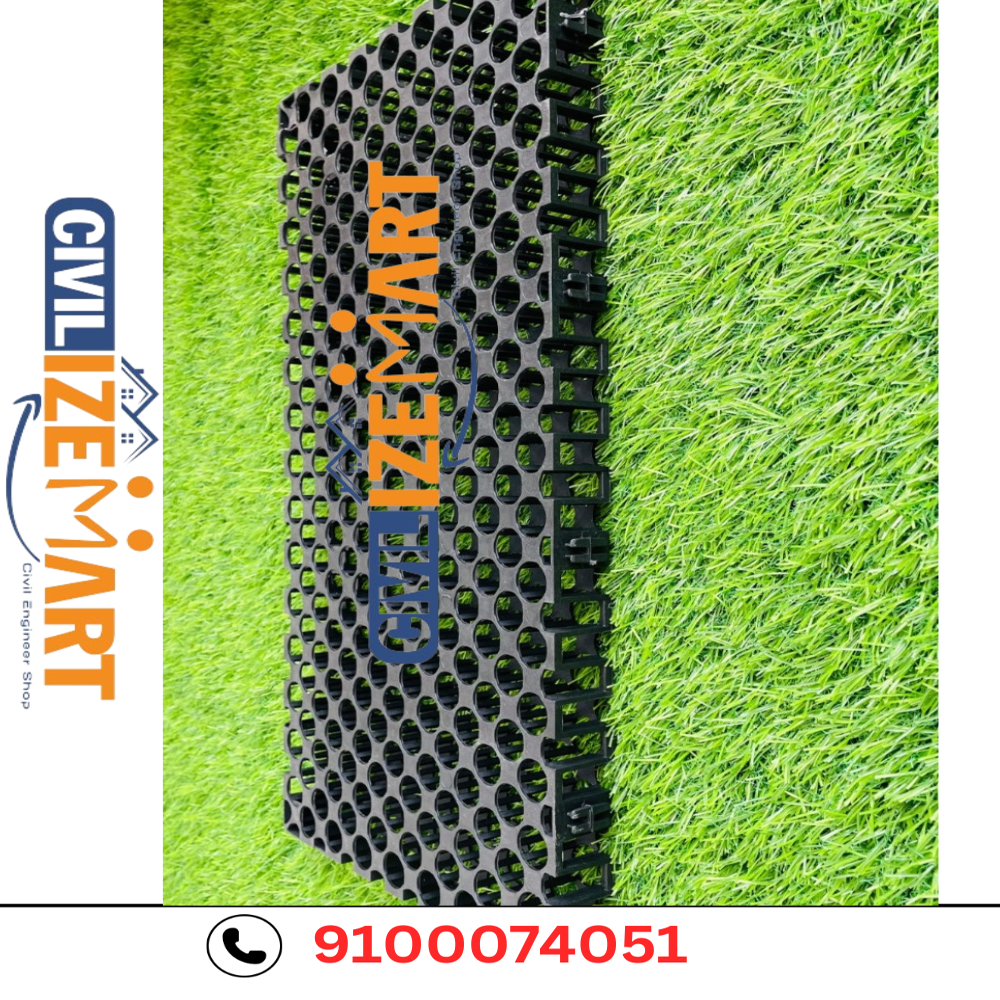

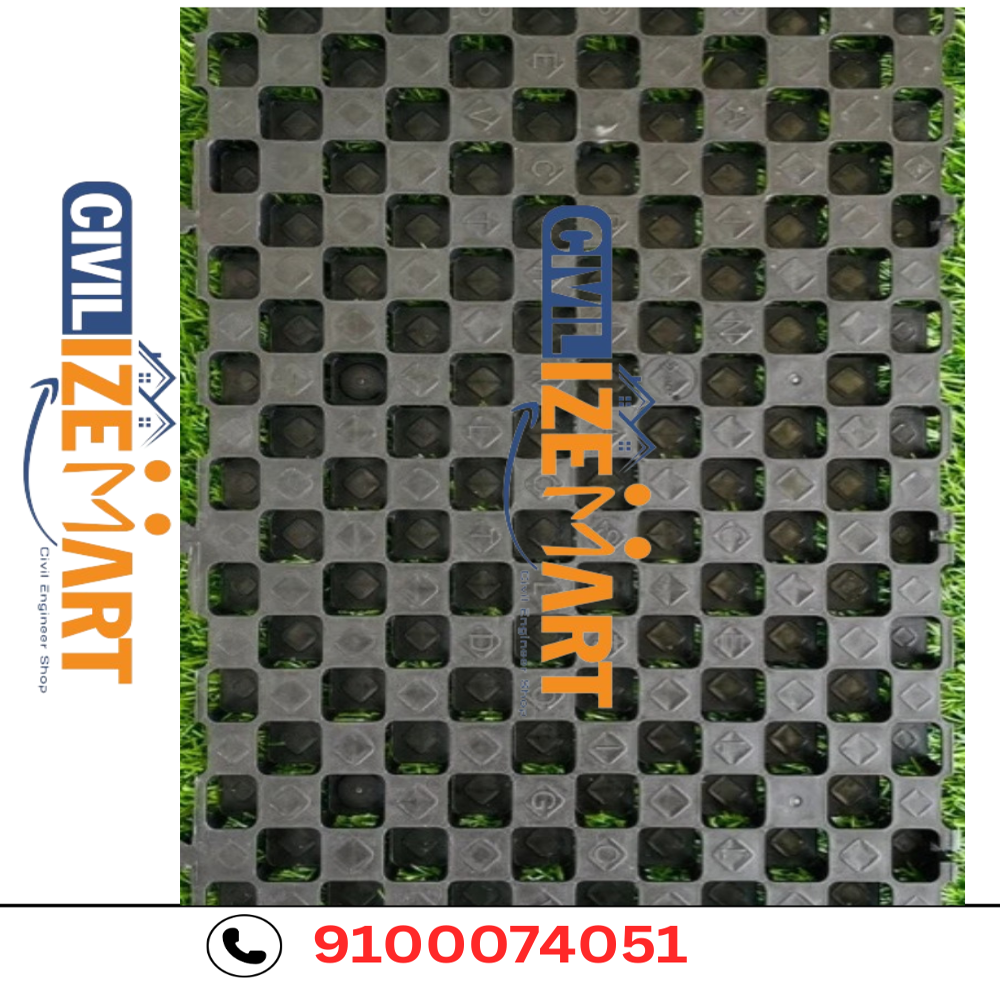

BLACK DRAINAGE CELL 30MM

Name: BLACK DRAINAGE CELL 30MM
Brand: CIVILIZE MART
Price: 32.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Square Foot

BLACK DRAINAGE CELL 30MM Specification

Installation Type
Interlocking modular system

Thickness
30mm

Features
Resistant to chemicals and biological agents, eco-friendly, lightweight

Machines Type
Not applicable (manual installation)

Application
Terrace gardens, podiums, landscaping, retaining walls, planter beds

Load Capacity
350 kN/sqm

Diameter
Cell diameter approx. 30-50mm per module

Material Grade
Virgin polypropylene

Color
Black

Usage
Efficient drainage, protection of waterproofing membranes

Form
Perforated cell panel

Purity
Virgin grade, non-toxic

Product Type
Black Drainage Cell

Main Material
Polypropylene (PP)

Surface Treatment
UV stabilized

Size
30mm height (typically 500mm x 500mm panel)

Weight
Approximately 1.3 kg per piece

Feature
High compressive strength, lightweight, easy to install

Shape
Modular square cell

Open Area Rate
>90%

Water Flow Capacity
25 L/m2/S

Fire Resistance
Class 1 as per ASTM D635

Packaging
Stacked panels, stretch-wrapped

Recyclability
100% recyclable

Life Span
More than 20 years under normal conditions

Panel Dimensions
500 mm x 500 mm x 30 mm

Connecting System
Snap-fit interlocking edges

Compressive Strength
>350 kN/m2

Temperature Resistance
-40C to +80C

BLACK DRAINAGE CELL 30MM Trade Information

Minimum Order Quantity
1 Square Foot

Delivery Time
1 Days

About BLACK DRAINAGE CELL 30MM

91 000 74051 Drainage cells are lightweight, interlocking modular units, typically made from recycled polypropylene, designed to create a crucial void space beneath surfaces for efficient sub-surface water management. This interconnected network allows water to flow horizontally towards drainage outlets, preventing waterlogging in green spaces, reducing hydrostatic pressure against structures like retaining walls and basements, and facilitating stormwater runoff in paved areas. Their high compressive strength supports overlying layers, while their ease of installation and environmental benefits, such as the use of recycled materials and contribution to sustainable drainage systems, make them a versatile and valuable component in various landscaping and construction applications.

Efficient Drainage and Protection

BLACK DRAINAGE CELL 30MM panels are engineered for rapid drainage and optimal protection. Their open area rate exceeding 90% prevents water stagnation and alleviates hydrostatic pressure on waterproofing membranes-making them an ideal solution for terrace gardens, retaining walls, landscaping, and planter beds. This efficiency not only safeguards structural integrity but also enhances plant health in green roof systems.

Superior Strength and Longevity

With exceptional compressive strength exceeding 350 kN/m2 and resistance to a wide range of temperatures (-40C to +80C), these drainage cells are built to support heavy loads and endure harsh conditions. The UV-stabilized, virgin-grade polypropylene construction ensures long-lasting performance, offering a lifespan of more than 20 years with minimal maintenance.

Eco-Friendly and User-Friendly Design

The panels are manufactured using 100% recyclable, non-toxic polypropylene, making them an environmentally responsible choice. Their modular design and snap-fit interlocking system simplify manual installation and allow flexible coverage, while lightweight construction (1.3 kg/piece) enables effortless transportation and handling at any site.

FAQ's of BLACK DRAINAGE CELL 30MM:

Q: How do you install the BLACK DRAINAGE CELL 30MM panels?

A: Installation is straightforward-simply align the snap-fit interlocking edges of each panel and press them together to create a seamless layer. No machines or special tools are needed, making it suitable for manual installation on various surfaces like terraces, podium decks, or green roofs.

Q: What are the main benefits of using these drainage cells in landscaping?

A: These drainage cells provide rapid water flow, protect waterproofing membranes from damage, reduce hydrostatic pressure, and are lightweight for easy handling. Their high compressive strength and UV resistance ensure durability in demanding landscaping and rooftop applications.

Q: Where can the BLACK DRAINAGE CELL 30MM be used effectively?

A: They are ideal for terrace gardens, planter beds, podiums, retaining walls, and general landscaping. Their modular, high-strength design makes them suitable for commercial developments, residential projects, rooftops, and garden spaces in need of advanced drainage solutions.

Q: What process ensures durability and long lifespan of these panels?

A: Manufactured from UV-stabilized, virgin polypropylene and engineered with a perforated, interlocking modular design, these panels resist environmental stressors like chemicals, biological agents, and extreme temperatures, resulting in a service life exceeding 20 years under normal conditions.

Q: What makes these drainage cells eco-friendly?

A: The BLACK DRAINAGE CELL 30MM panels are made from 100% recyclable, non-toxic virgin polypropylene, ensuring environmental sustainability both during use and after end-of-life recycling.

Q: When should these drainage systems be installed during construction?

A: They are typically fitted immediately after waterproofing membranes are applied and before soil or paving layers are added. Early installation helps ensure effective protection and drainage from the outset of the landscaping or roofing project.

Q: What is the water flow capacity and why is it important?

A: Each panel offers a water flow capacity of 25 L/m2/s thanks to its >90% open area rate. This high capacity prevents water accumulation, ensuring optimal drainage and minimizing water-related structural issues on roofs or landscapes.
