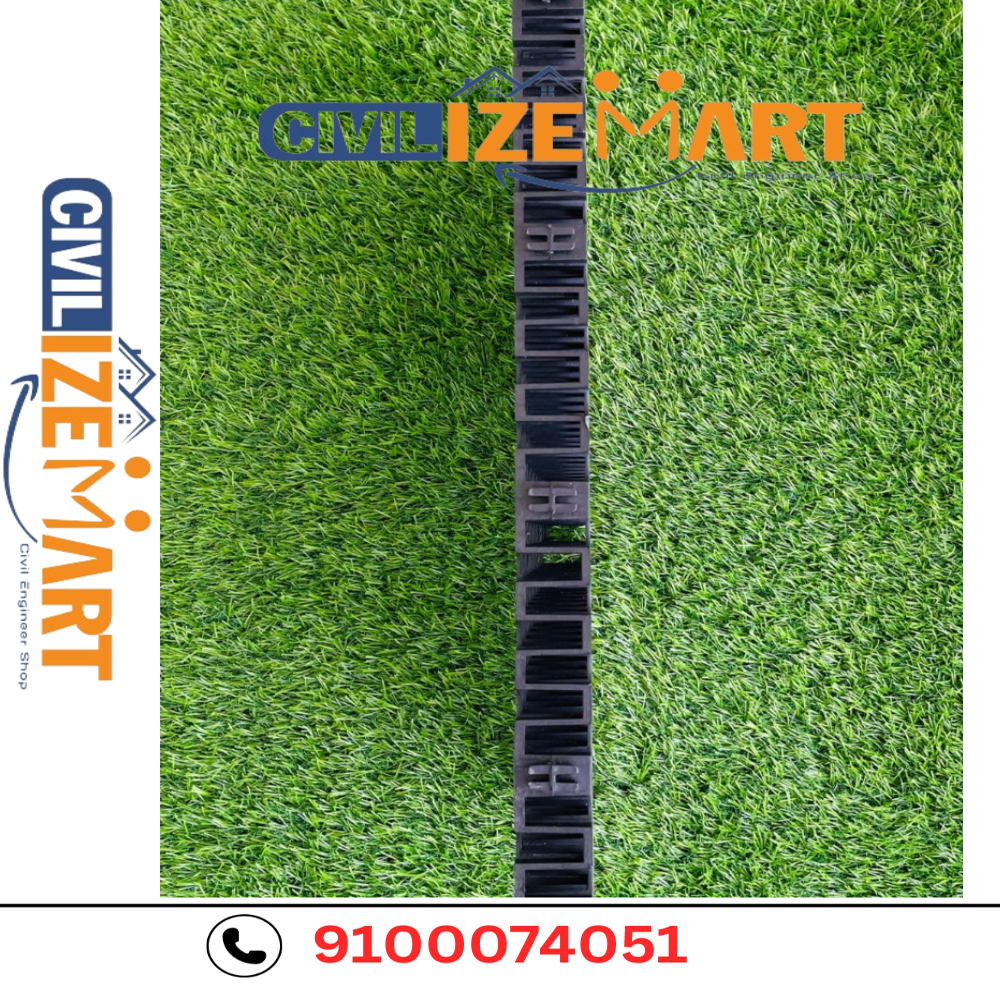

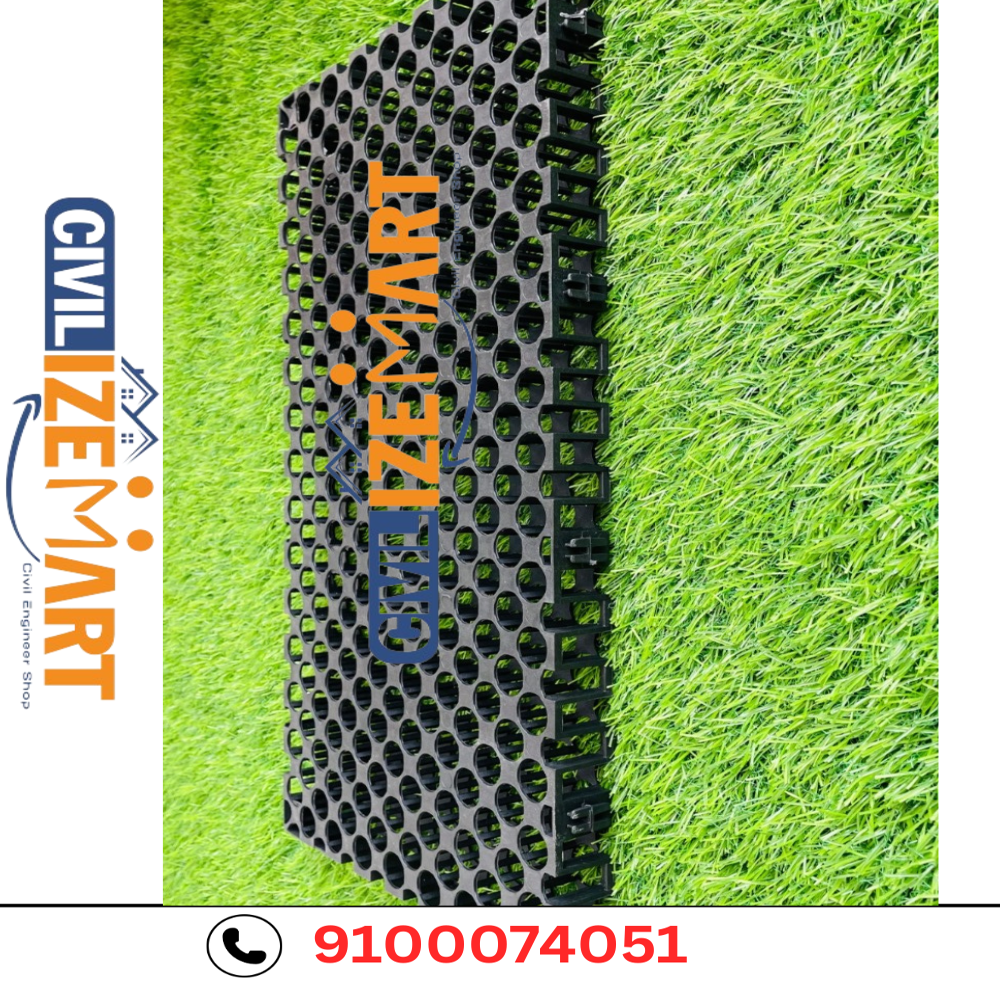

DRAIN CELL FOR ROOF TOP

Get a Price/Quote

MOQ : 1 Kilograms

DRAIN CELL FOR ROOF TOP Specification

Installation Type
Laid Under Soil Media

Material Grade
Virgin/UV Stabilized HDPE

Usage
Facilitates Surface Water Drainage, Root Protection

Color
Black

Machines Type
Manual Application

Features
Lightweight, Durable, Corrosion Resistant

Thickness
20 mm

Form
Cellular Grid Panel

Application
Rooftop Waterproofing, Terrace Gardens, Podium Slabs, Landscaping

Purity
100% Virgin Polymer

Load Capacity
Up to 100 t/m2

Product Type
Drain Cell for Roof Top

Main Material
High Density Polyethylene (HDPE)

Surface Treatment
Smooth/Uncoated

Size
500 mm x 250 mm x 20 mm

Weight
Approx. 1.3 kg per piece

Feature
Excellent Water Drainage and High Strength

Shape
Rectangular Grid Structure

Compressive Strength
400 kN/m2

Service Life
More than 25 Years

Chemical Resistance
Resistant to Chemicals and Microbial Attack

Temperature Resistance
-20C to +80C

Water Flow Rate
8.0 L/sec/m2

Void Space
>90% Open Area

Packaging
Stacked in Bundles

Eco-Friendly
100% Recyclable and Non-Toxic

Fire Resistance Class
Class B1 (Tested as per DIN 4102)

DRAIN CELL FOR ROOF TOP Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
1 Days

About DRAIN CELL FOR ROOF TOP

91 000 74051 Drainage cells are lightweight, interlocking modular units, typically made from recycled polypropylene, designed to create a crucial void space beneath surfaces for efficient sub-surface water management. This interconnected network allows water to flow horizontally towards drainage outlets, preventing waterlogging in green spaces, reducing hydrostatic pressure against structures like retaining walls and basements, and facilitating stormwater runoff in paved areas. Their high compressive strength supports overlying layers, while their ease of installation and environmental benefits, such as the use of recycled materials and contribution to sustainable drainage systems, make them a versatile and valuable component in various landscaping and construction applications.

Advanced Drainage and Root Protection

With its cellular grid design and over 90% open area, the Drain Cell facilitates efficient surface water drainage while preventing root intrusion. It maintains optimal conditions for rooftop waterproofing and terrace gardens, ensuring longevity of both the structure and the vegetation above.

Built for Strength and Sustainability

Constructed from premium-grade virgin HDPE, each drain cell panel withstands compressive loads up to 400 kN/m2, making it suitable for areas subject to high foot traffic or heavy landscaping. It is exceptionally durable, fully recyclable, non-toxic, and resistant to fire, chemicals, and microbes.

Easy Installation and Maintenance

Designed for manual application, the lightweight drain cell panels are stacked in bundles for convenient transport and are simple to lay under soil media. This ease of installation reduces labor time and cost, while the smooth, uncoated surface facilitates hassle-free maintenance.

FAQ's of DRAIN CELL FOR ROOF TOP:

Q: How is the Drain Cell for Rooftop installed?

A: Drain Cell panels are manually laid beneath the soil media on rooftops, terrace gardens, or landscaping areas. Their lightweight design ensures easy handling, and their interlocking grid structure allows seamless and secure setup, reducing installation time.

Q: What benefits does the Drain Cell provide for rooftop waterproofing and gardens?

A: The Drain Cell offers rapid surface water drainage, prevents waterlogging and root intrusion, thereby protecting waterproofing membranes and enhancing plant health. Its structure provides strong mechanical support and sustains heavy loads, increasing roof garden durability.

Q: When should I consider using a Drain Cell system on my rooftop project?

A: Use a Drain Cell system when planning rooftop waterproofing, green terraces, podium slabs, or landscaped areas where efficient drainage and structural protection are required. It is ideal for new builds or retrofits where longevity and eco-friendliness matter.

Q: Where can Drain Cell panels be applied apart from rooftops?

A: Besides rooftops, Drain Cell panels are suitable for podium slabs, basement drainage, landscaped decks, planter beds, and any application needing superior water management combined with structural stability and root protection.

Q: What makes this Drain Cell system eco-friendly and safe?

A: The Drain Cell is made from 100% recyclable, virgin HDPE, and is non-toxic. It is UV-stabilized for longevity, corrosion-resistant, and carries a service life of over 25 years, minimizing environmental impact and maintenance demands.

Q: How does the Drain Cell perform under extreme conditions or heavy loads?

A: With a compressive strength of 400 kN/m2 and fire resistance rated Class B1 (DIN 4102), the Drain Cell handles significant structural loads and temperature variations (-20C to +80C) without compromising functionality or integrity.
