Subsoil Drainage Detail

About Subsoil Drainage Detail

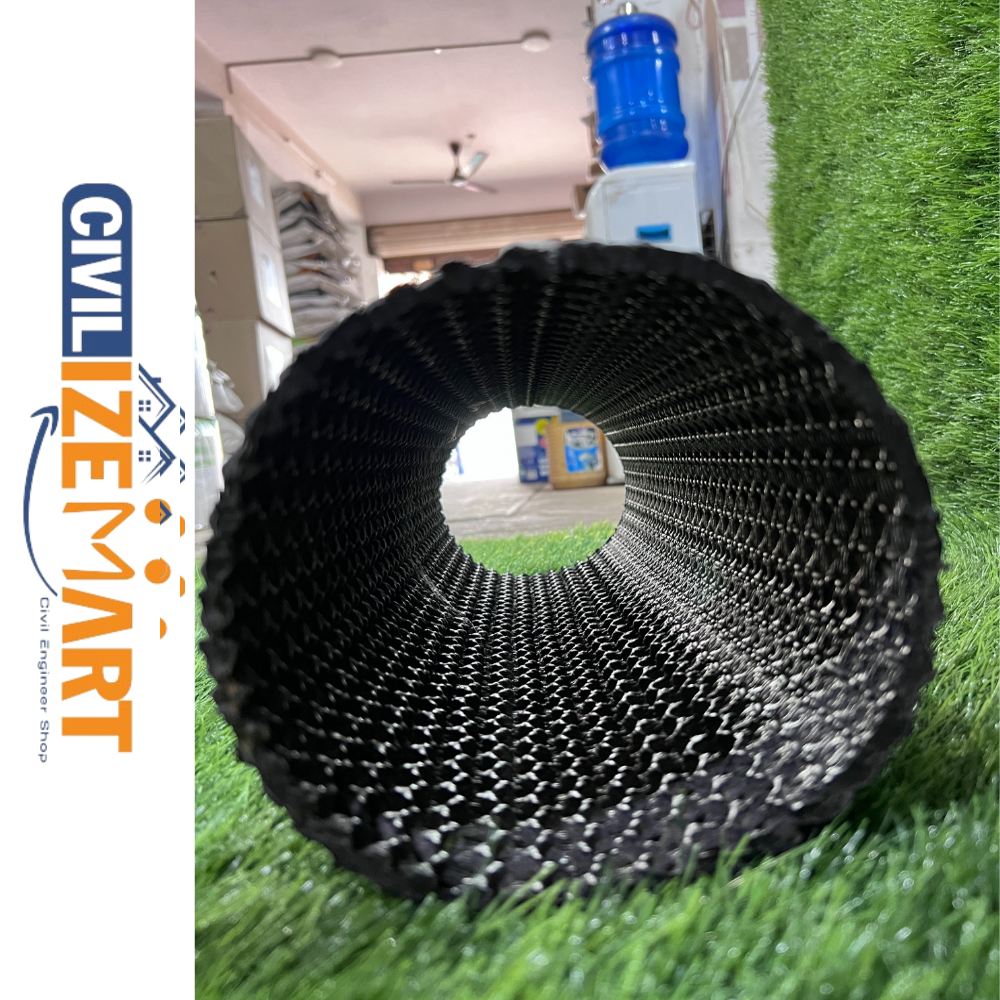

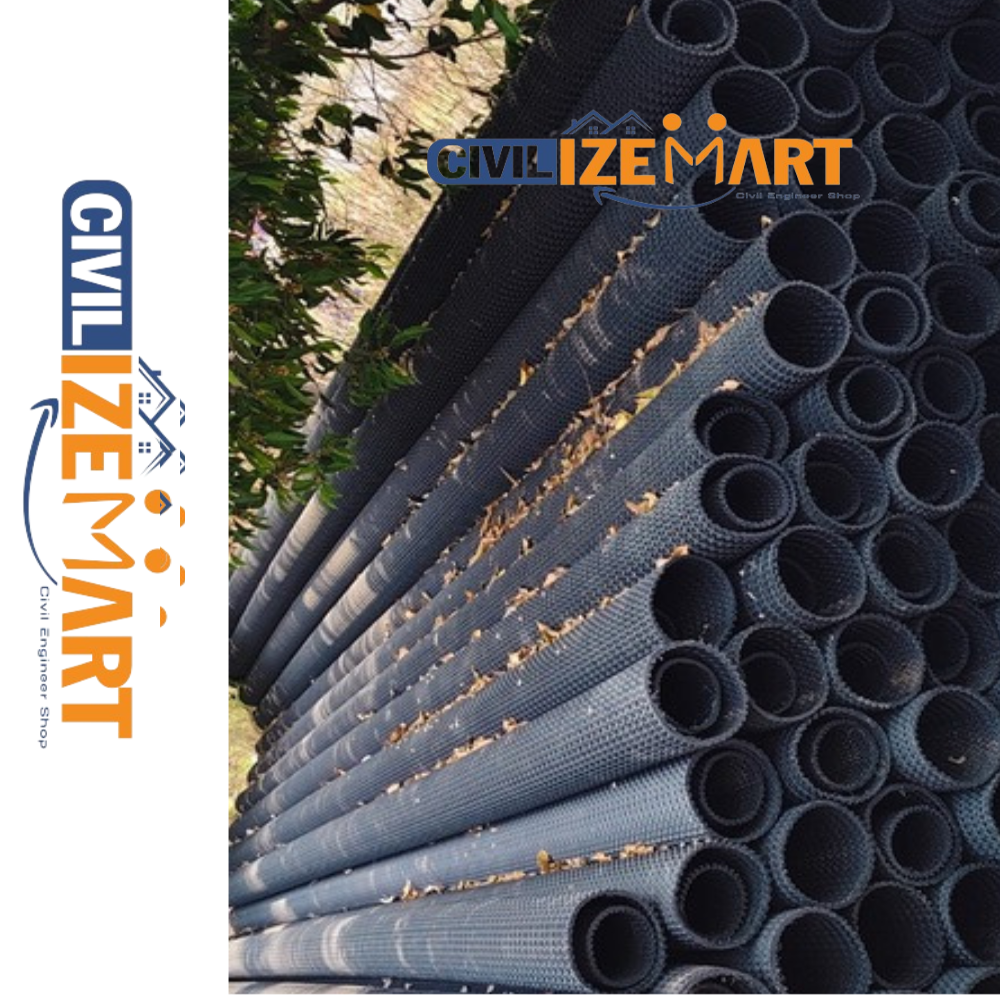

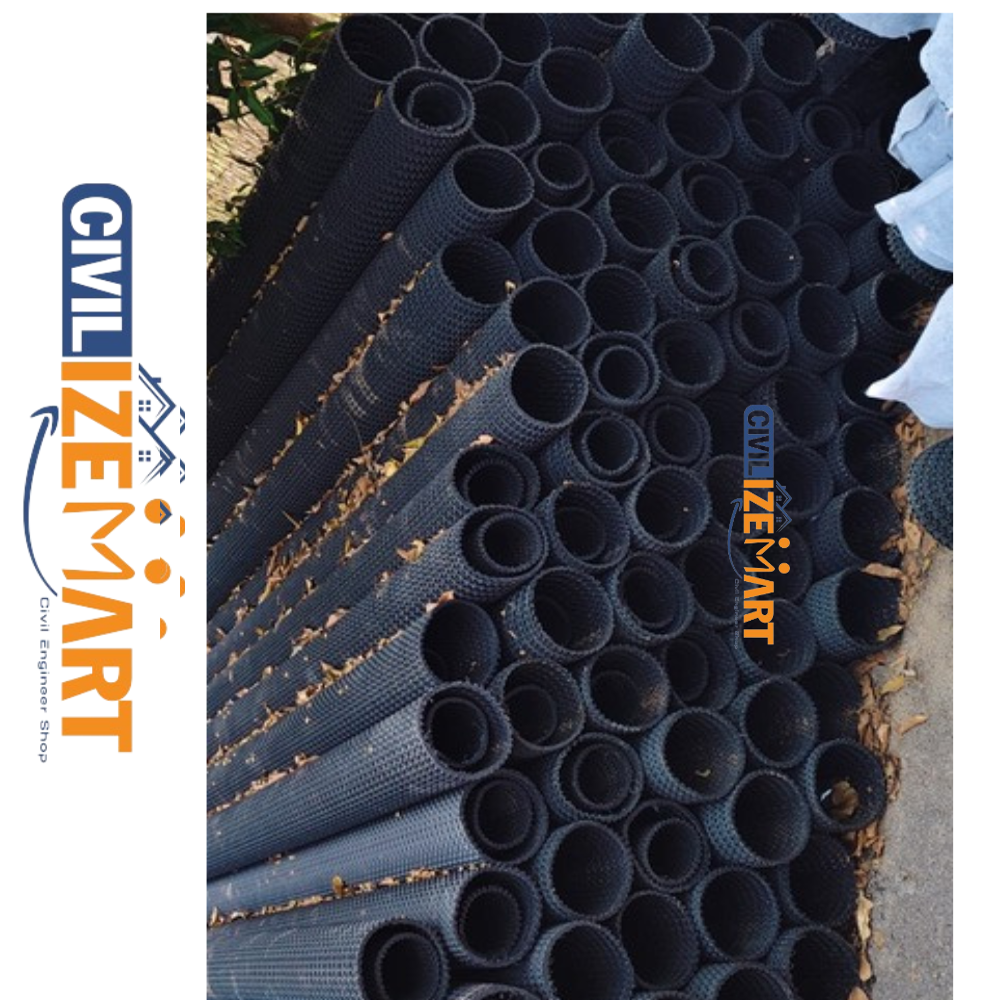

The Drain is a high-quality HDPE perforated drainage pipe wrapped with geotextile fabric, designed for efficient subsoil drainage in residential, commercial, and industrial projects. It helps remove excess water from soil, prevents clogging, and protects structures from moisture-related damage.
Features-:
High-strength HDPE corrugated pipeUniform perforations for smooth water flowWrapped with non-woven geotextile to prevent soil entryFlexible, lightweight & easy to installLong-lasting and corrosion resistant
ApplicationsBasement & retaining wall drainageLandscape and garden drainageRoad and highway subsoil drainageSports ground drainageBuilding foundation protectionRainwater management systemsAgriculture & irrigation drainage
Benefits-:Prevents waterloggingControls soil erosionReduces hydrostatic pressureStops clogging and improves flowIncreases building life and structural stability
CivilizeMart supplies premium-grade Drain pipes with reliable quality for all construction and drainage needs.

Reliable Materials for Long-lasting Subsoil Drainage

Our drainage detail incorporates a robust PVC perforated pipe with a 100 mm diameter, shielded by a non-woven geotextile wrap. The select 20 mm gravel aggregate ensures efficient water flow, while the recommended trench dimensions and carefully compacted backfill promote structural stability. The system is designed to offer exceptional performance, fitting a wide range of site conditions across India.


Installation Process and Best Practices

Trench excavation should begin to the specified 300 mm width and a depth of no less than 600 mm. Place the geotextile-wrapped PVC perforated pipe centrally, ensuring a consistent 200 mm of washed 20 mm gravel surrounds the pipe. Compact selected excavated material for backfill, and make certain the pipe's outlet is correctly connected to the stormwater system or soakaway. Maintaining the minimum 1:200 installation slope is essential for optimal drainage efficiency.
