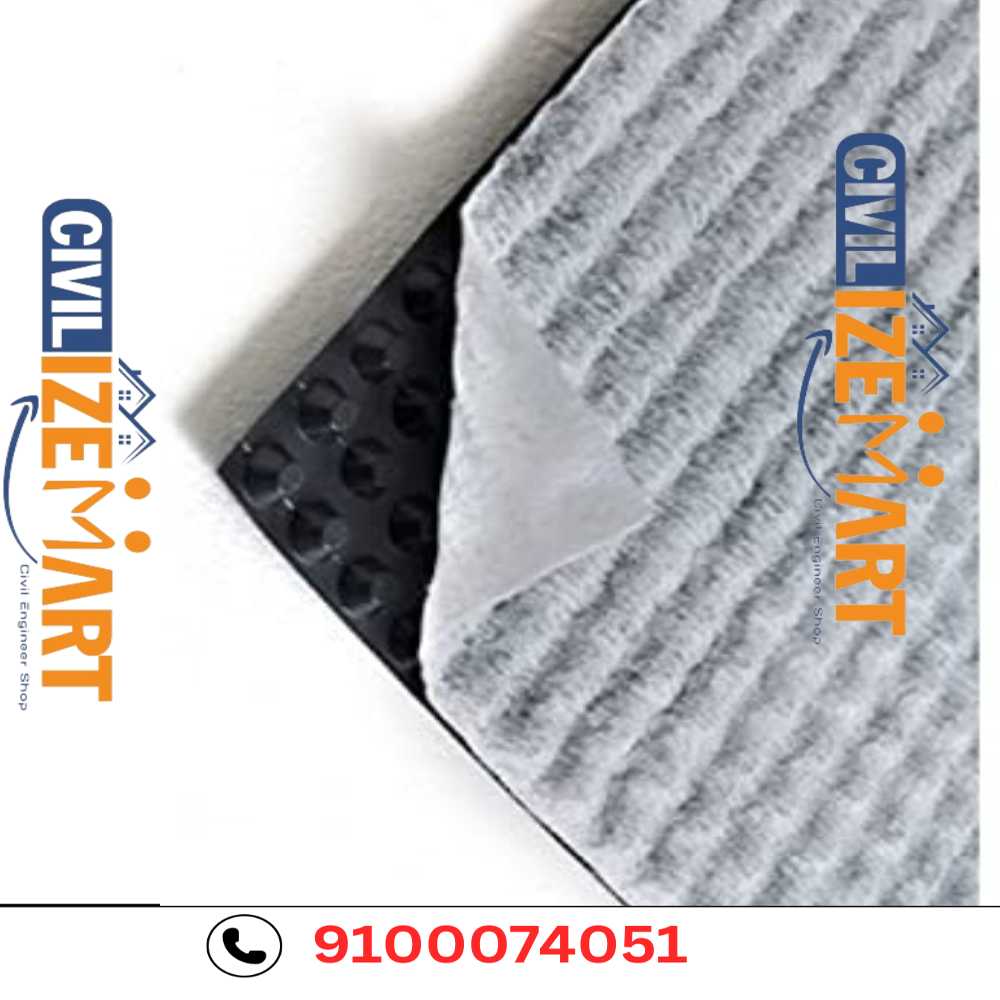

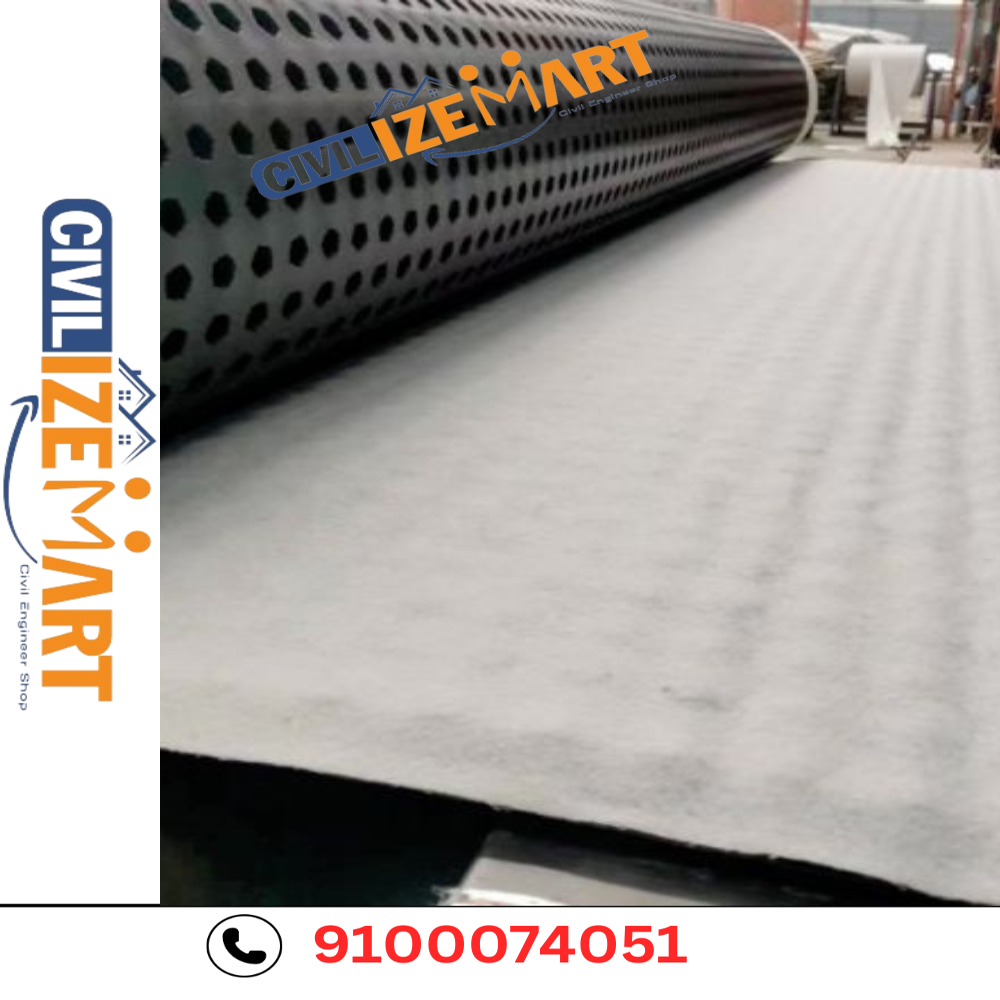

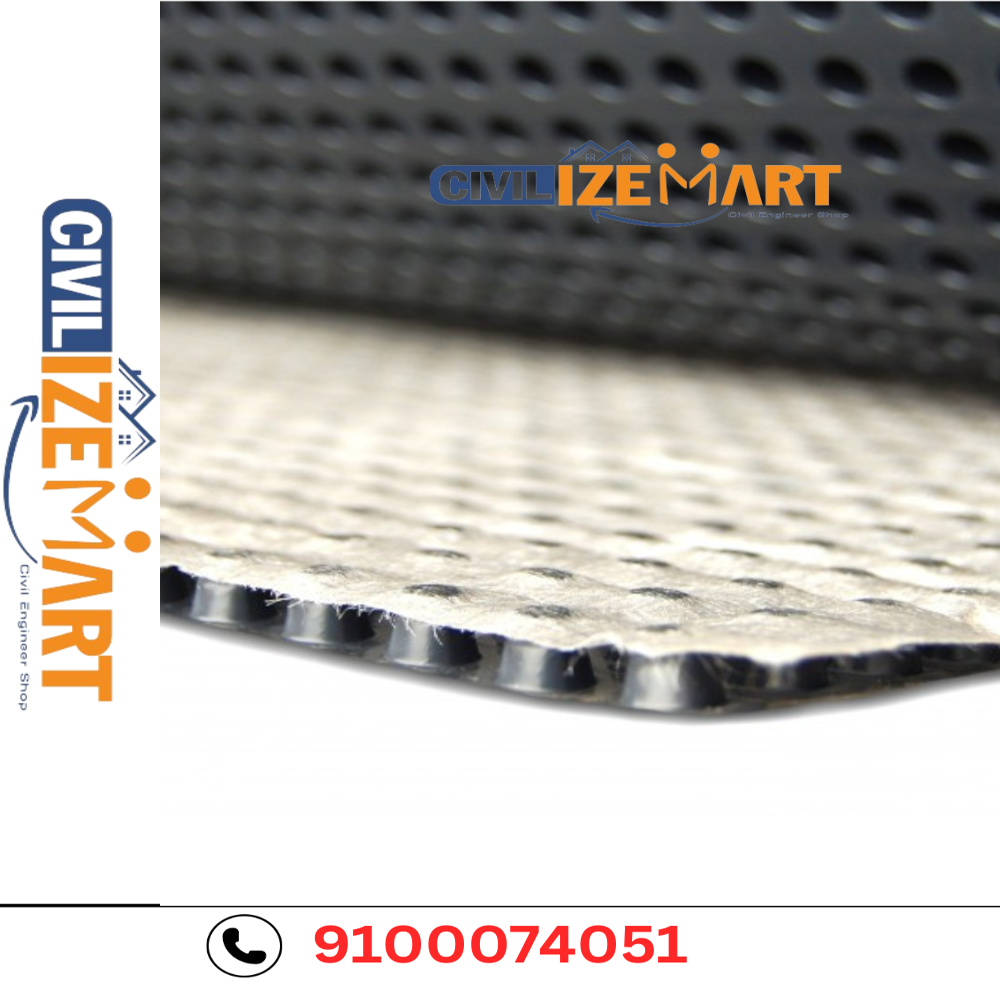

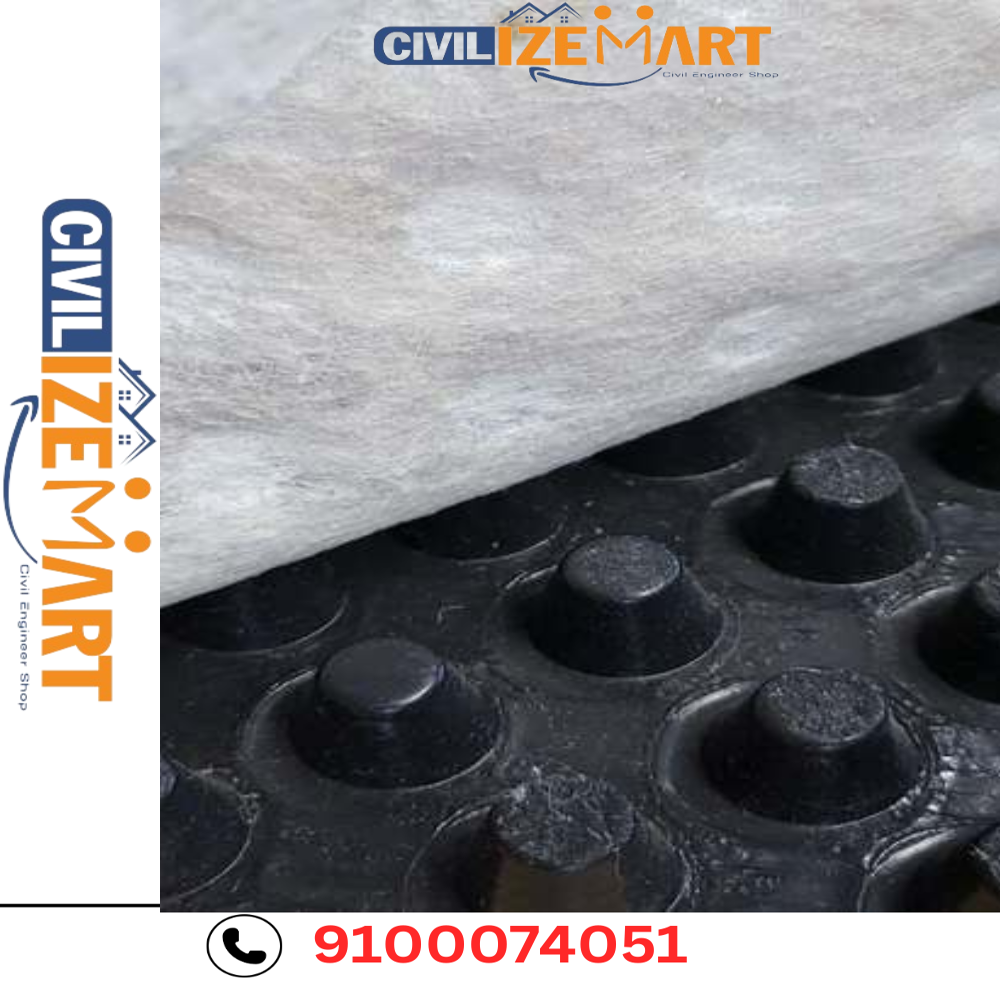

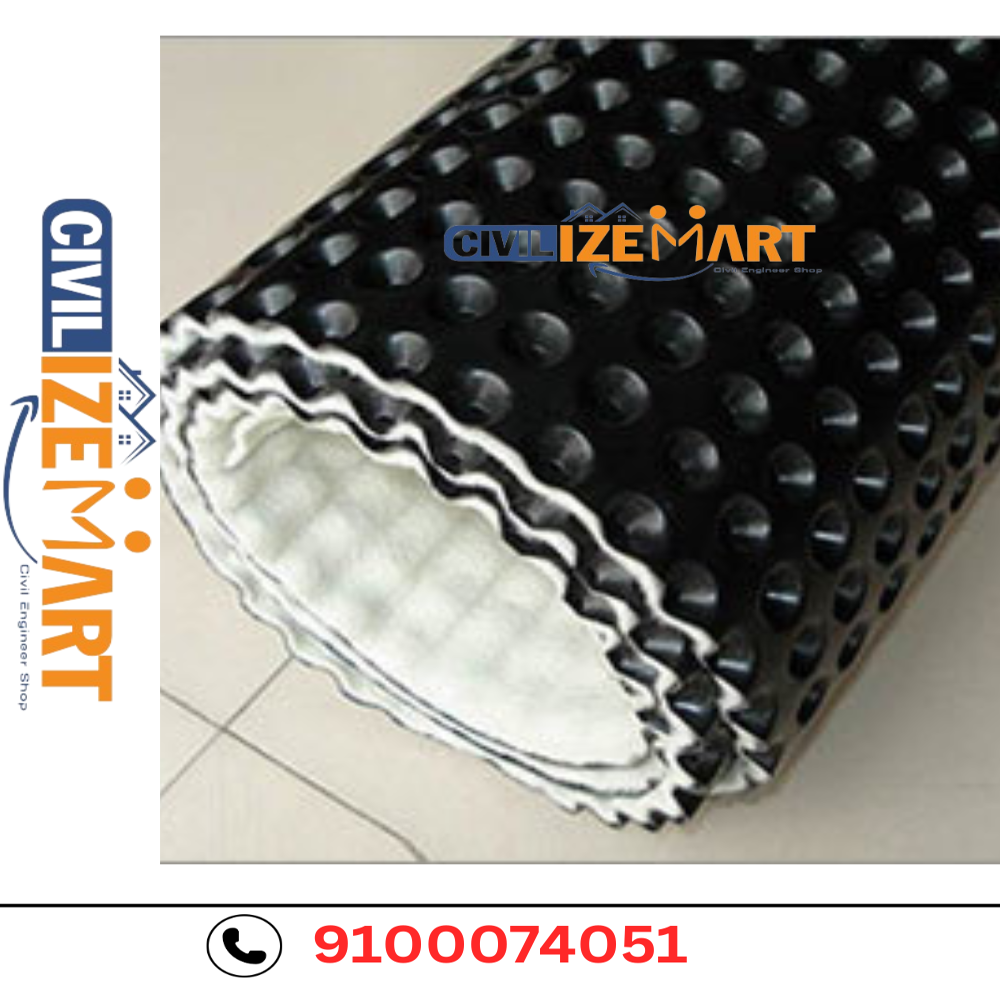

DIMPLE BOARD WITH GEOTEXTILE

Name: DIMPLE BOARD WITH GEOTEXTILE
Brand: CIVILIZE MART
Price: 230.0 INR
Availability: InStock

Price 230.0 INR/ Square Meter

Get a Price/Quote

MOQ : 1 Piece

DIMPLE BOARD WITH GEOTEXTILE Specification

Application
Basement waterproofing, foundation protection, retaining walls, tunnel drainage

Color
Black (Dimple Board), White/Grey (Geotextile)

Chemical Resistance
Excellent

Material
High Density Polyethylene (HDPE) with Non-woven Geotextile

Dimple Shape
Conical

Product Name
Dimple Board With Geotextile

Water Permeability
High

Packaging Type
Rolls

UV Resistance
Yes

Temperature Resistance
-30C to +80C

DIMPLE BOARD WITH GEOTEXTILE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
1 Days

About DIMPLE BOARD WITH GEOTEXTILE

91 000 74051 Geotextile Dimple Board (VTD08-PLUS) is a high-performance, durable, and lightweight drainage solution made from high-density polyethylene (HDPE) with a non-woven geotextile layer. Its specifically designed to protect waterproof membranes in basements and other underground structures, ensuring long-lasting protection from moisture and soil pressure.
Key Features:Durable & Lightweight: Made from HDPE with an attached non-woven geotextile, this board is both strong and easy to handle.Waterproof & Vapor-Proof: Impermeable to water and moisture, protecting waterproof membranes.Dimple Design: 8mm high dimples create an air gap, preventing moisture from reaching walls and allowing them to breathe.Cost-Effective & Quick Application: A fast, low-cost solution for waterproofing protection that reduces time and effort.
How to Use:Vertical Application (Walls): Attach the dimple board to the wall, ensuring the dimples face the wall. Overlap joints by at least 20 cm. Secure with hot air welding or insulated tape.Horizontal Application (Ground): Lay the board on the ground, with dimples facing down. Overlap joints by at least 30 cm and secure using welding or tape.Optimal Application Temperature: +5C to +30C
Advantages:Effective Waterproofing: The dimple design keeps moisture away from the waterproof membrane and allows air circulation, reducing the risk of damage.Pressure Protection: Protects underground waterproofing from pressure caused by soil.Fast & Easy Installation: Quick to install with simple overlap and welding/taping methods.Applications:Basement WallsMetro/Train TunnelsRoads & HighwaysParking AreasDams & PipelinesTerrace Gardens
VTD08-PLUS is ideal for use in drainage systems, soil protection, and creating moisture barriers for concrete, making it a versatile solution for a variety of underground applications.

Enhanced Structural Protection

This dimple board system shields foundation walls and basements from water ingress and soil pressure. Its robust HDPE base with geotextile fabric maintains structural integrity even under harsh weather conditions. Whether for new builds or retrofits, it offers a practical, long-lasting barrier that effectively manages subsurface water and escalates building durability.

Superior Drainage Efficiency

Designed with a high water permeability rate, the product's conical dimples create efficient drainage channels. The non-woven geotextile layer acts as a filter, preventing soil particles from clogging the system. This ensures continuous drainage along foundation walls, tunnels, and retaining walls, minimizing hydrostatic pressure and reducing water-related damages.

Versatile and Durable Material Composition

Manufactured from HDPE and combined with a sturdy geotextile layer, the dimple board exhibits exemplary resistance to chemicals, UV rays, and temperatures ranging from -30C to +80C. This makes it suitable for various climate zones and industrial environments. Its flexible packaging in roll form simplifies storage and on-site installation.

FAQ's of DIMPLE BOARD WITH GEOTEXTILE:

Q: How is Dimple Board With Geotextile installed during basement waterproofing projects?

A: The board is unrolled against the external surface of foundation walls, with the geotextile side facing outward to filter soil while the dimples provide drainage channels. It is then mechanically fastened or adhered to the wall before backfilling, ensuring a continuous barrier that channels water away from the structure.

Q: What are the primary benefits of using this product for retaining walls and tunnels?

A: This system manages water by providing high drainage capacity, preventing water accumulation, reducing hydrostatic pressure, and extending structural lifespan. Its chemical and UV resistance ensures it maintains effectiveness even in demanding environments.

Q: When should Dimple Board With Geotextile be used?

A: It is best used during new construction or renovation projects when waterproofing and drainage are critical, such as for basements, foundation walls, tunnels, or any below-ground structure prone to water ingress or pressure-related damage.

Q: Where can I source this dimple board in India?

A: You can obtain this product from authorized distributors, service providers, suppliers, and traders specializing in construction waterproofing solutions across various regions in India.

Q: What materials compose the Dimple Board With Geotextile and what are their roles?

A: The board consists of high-density polyethylene (HDPE) for durability and chemical resistance, while the non-woven geotextile layer allows water flow and prevents clogging by soil particles, together forming a robust waterproofing and drainage solution.

Q: Is the Dimple Board With Geotextile suitable for extreme weather conditions?

A: Yes, it is designed to withstand temperatures from -30C up to +80C, and its UV- and chemical-resistant materials make it suitable for varied and demanding environmental conditions.
