HYDROPHILIC SWELLABLE WATER BAR

About HYDROPHILIC SWELLABLE WATER BAR

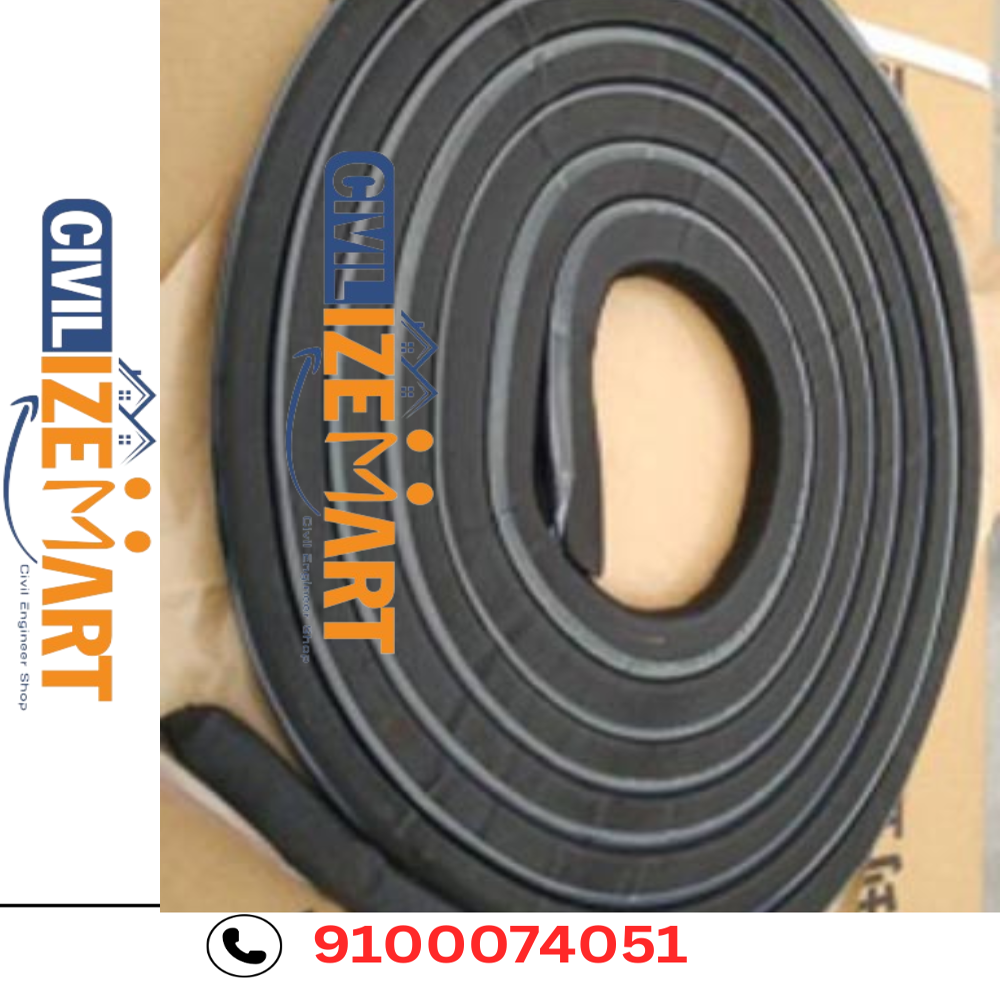

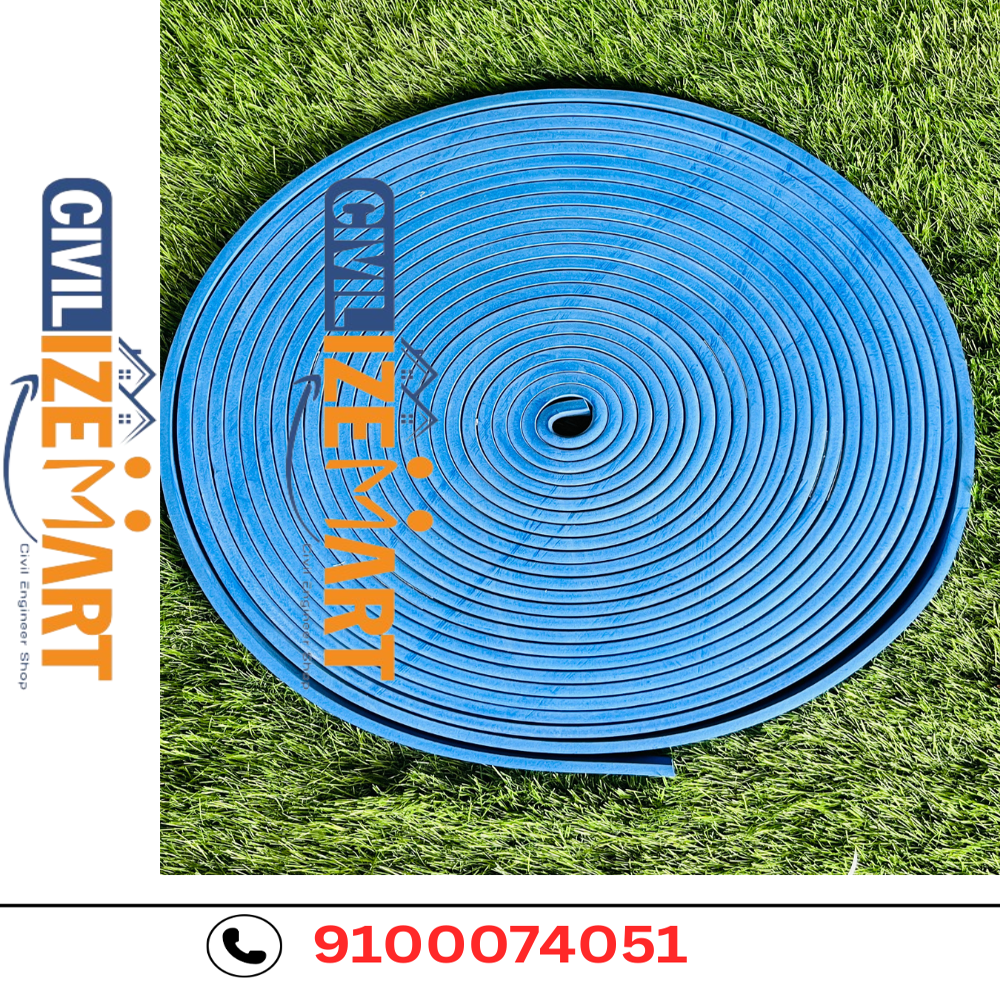

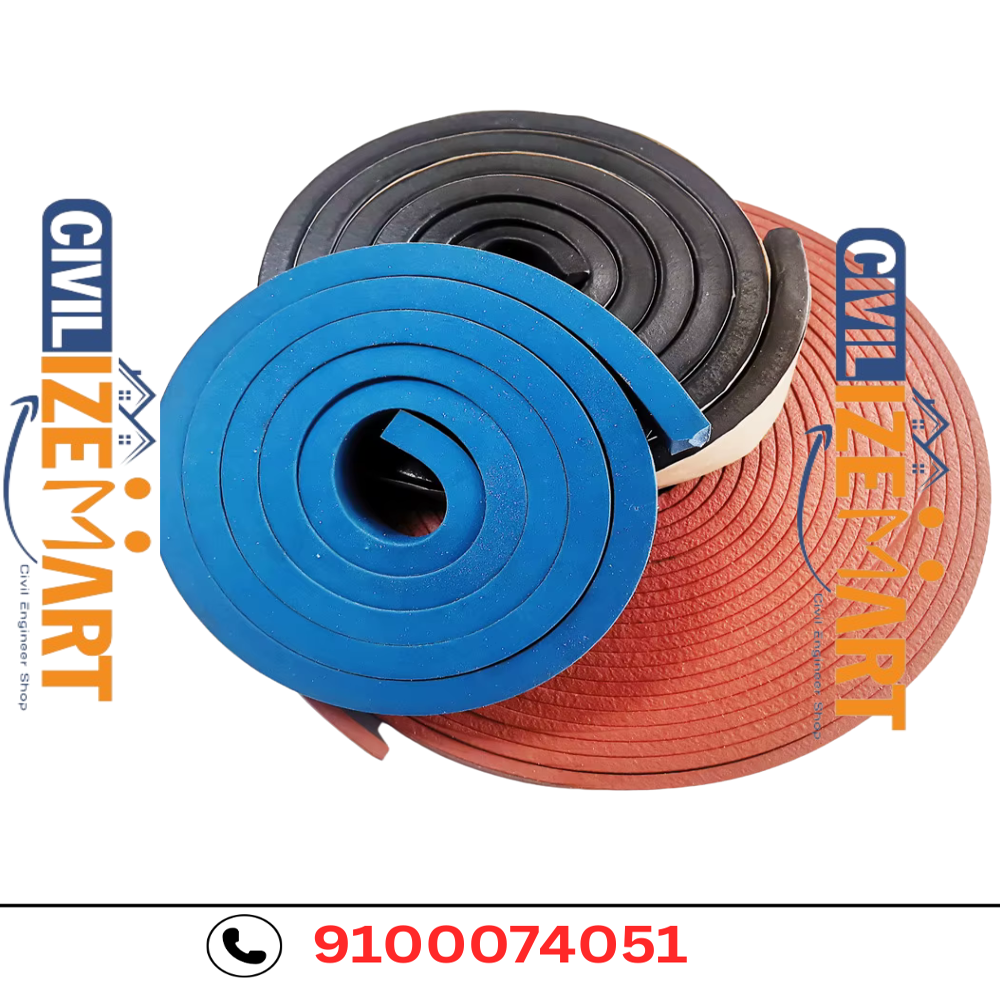

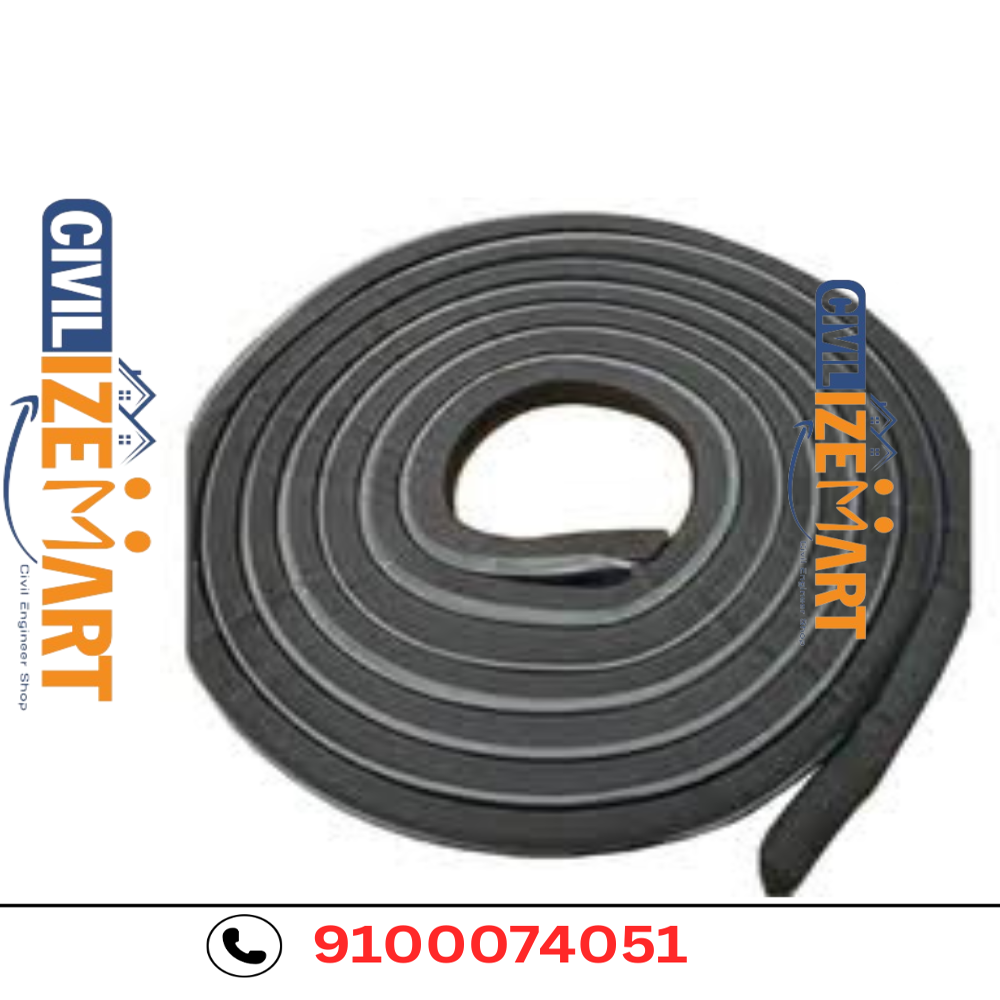

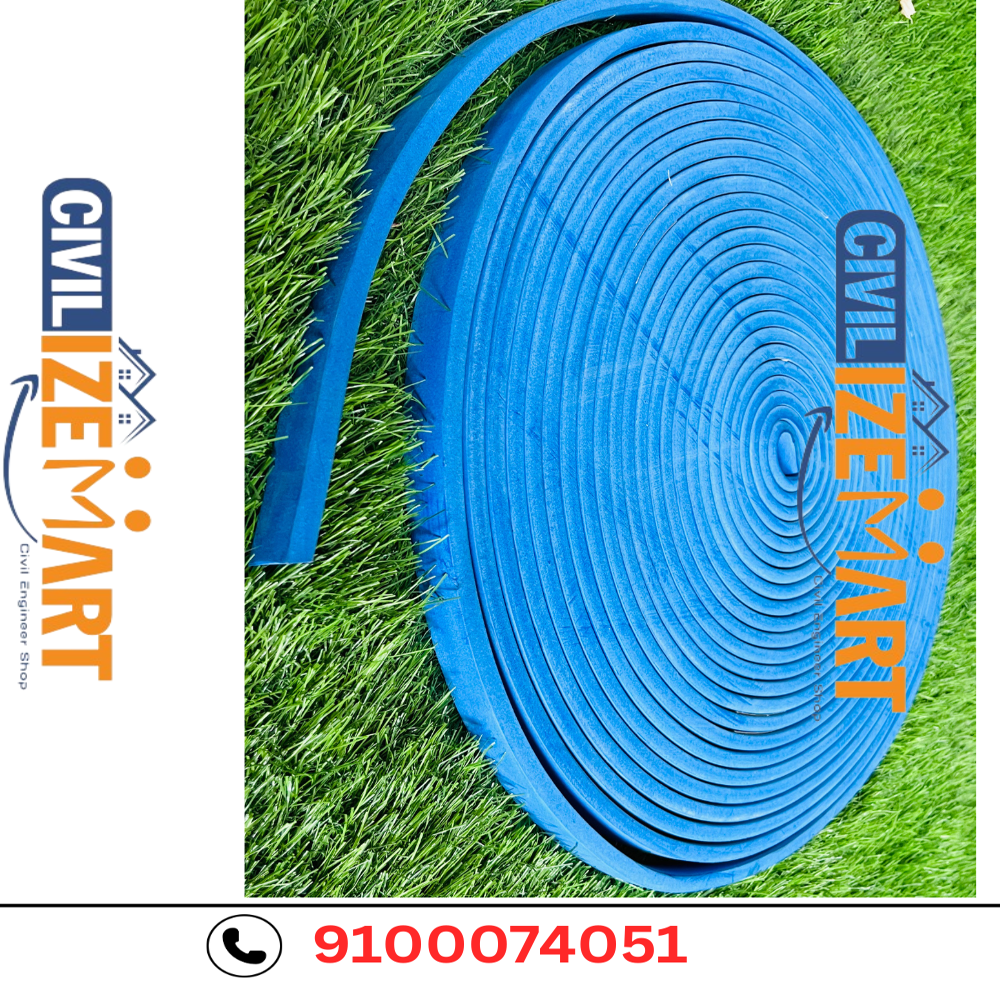

91 000 74051 A Swellable Water Bar is a flexible hydrophilic strip used for waterproofing construction joints and cold joints in concrete structures. When it comes into contact with water, it swells up to many times its original volume, blocking water passage and sealing the joint effectively.
It is an ideal alternative to conventional PVC water stops for difficult placements, vertical joints, and complex shapes.
Key Features & Benefits
Hydrophilic swelling action Expands up to 200300% on contact with water, sealing gaps. Easy installation Can be nailed, stapled, or fixed with adhesive in construction joints. Excellent water sealing Prevents leakage through joints and honeycombs. Durable & chemical resistant Resists saline water, mild acids & alkalis. Flexible & adaptable Suitable for irregular profiles, penetrations, and difficult joint shapes. Cost effective Replaces large PVC water stops in many applications.
Areas of ApplicationWater tanks, underground sumpsSewage treatment plants, STPs & ETPsTunnels & metro structuresBasements, raft slabs, retaining wallsDams, canals, culverts, bridgesPrecast segments & segmental liningsPipe penetrations & concrete joints
Method of ApplicationSurface Preparation: Clean joint surface free of dust, oil, and laitance.Fixing: Place water bar in center of joint using nails, adhesive, or holder.Overlap: Ensure overlaps are minimum 50 mm, press firmly to avoid gaps.Concrete Placement: Pour concrete carefully without displacing the water bar.Curing: Allow concrete to set; upon water exposure, the strip swells to seal joints.
FAQ (Questions & Answers)Q1. What is a swellable water bar used for?It is used in construction joints (horizontal & vertical) to prevent water seepage.Q2. How does it work?It swells on contact with water, blocking water pathways through joints.Q3. Can it be used instead of PVC water stops?Yes. Especially suitable where PVC water stops are difficult to fix, like vertical joints, small widths, and repair jobs.Q4. What sizes are available?Common sizes are 25 10 mm, 20 15 mm, 25 20 mm, etc. Custom sizes are also available.Q5. What is the swelling capacity?Typically 200300% of its volume depending on grade and water quality.Q6. How to install it?It is fixed with nails, adhesives, or concrete nails in the joint before pouring concrete.Q7. What is the price?Average market price is around 200 350 per meter depending on size, brand, and quality.

Superior Water Resistance for Demanding Projects

Engineered for modern construction needs, the Hydrophilic Swellable Water Bar reliably prevents water leakage in joints exposed to hydrostatic pressure. Its high swelling capacity fills gaps and irregularities, providing a watertight seal in basements, tunnels, and water-retaining structures. The robust material composition ensures resilience against temperature variations and mechanical stresses, making it a confident choice for challenging environments.


Effortless Installation Embedded in Concrete Joints

Designed for practicality, the water bar is simply embedded within fresh concrete at construction joints. This straightforward method reduces installation time and ensures optimal positioning for effective waterproofing. Its flexibility allows for easy adaptation to different joint configurations, streamlining site operations and providing rapid, reliable results in both new builds and repairs.
