DIMPLE BOARD WITH GEOTEXTILE

Get a Price/Quote

MOQ : 1 Piece

DIMPLE BOARD WITH GEOTEXTILE Specification

Application
Basement waterproofing, retaining walls, tunnels, green roofs, drainage systems

DIMPLE BOARD WITH GEOTEXTILE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
1 Days

About DIMPLE BOARD WITH GEOTEXTILE

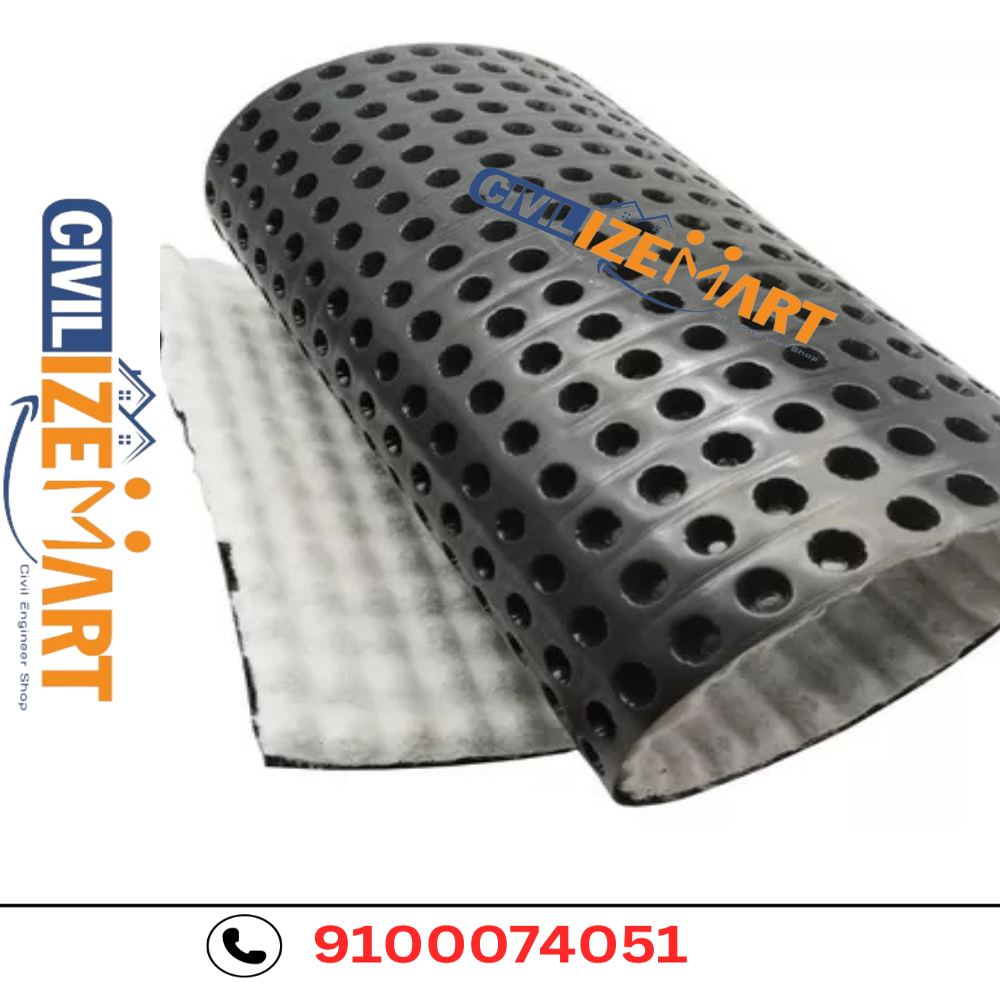

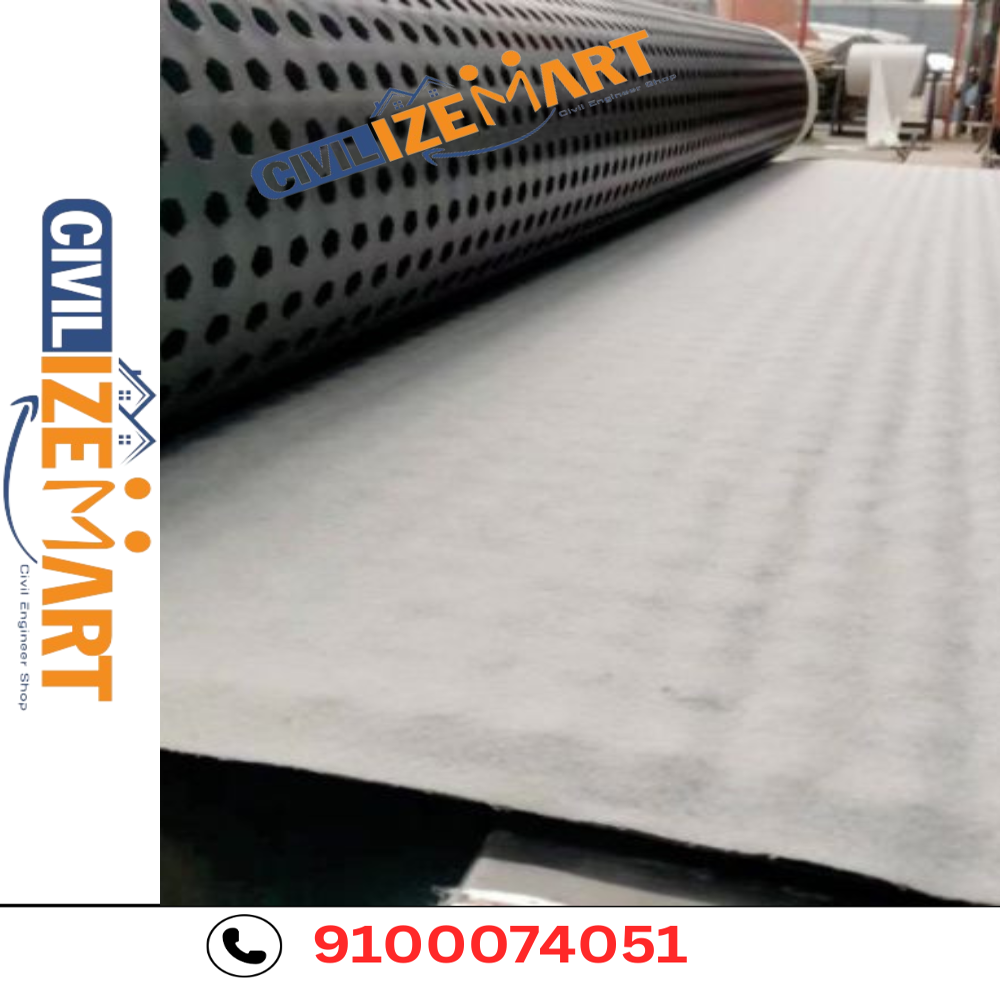

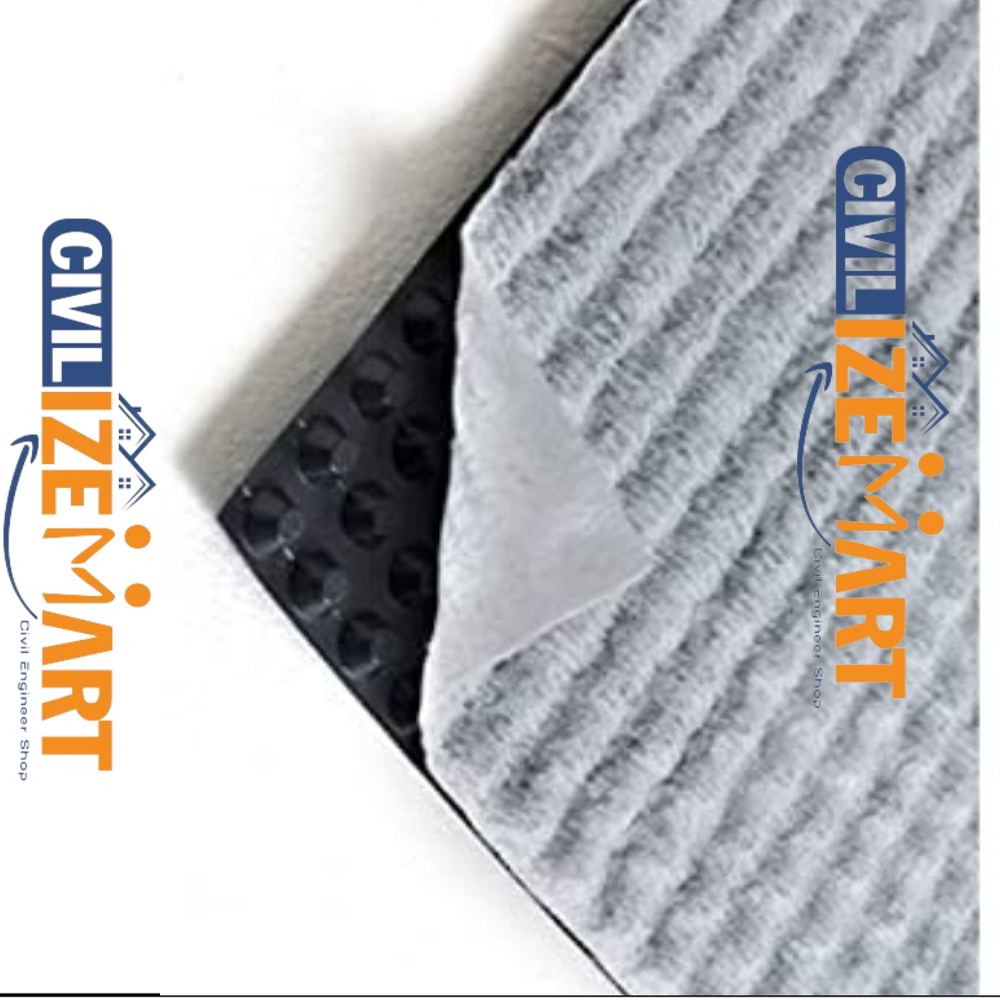

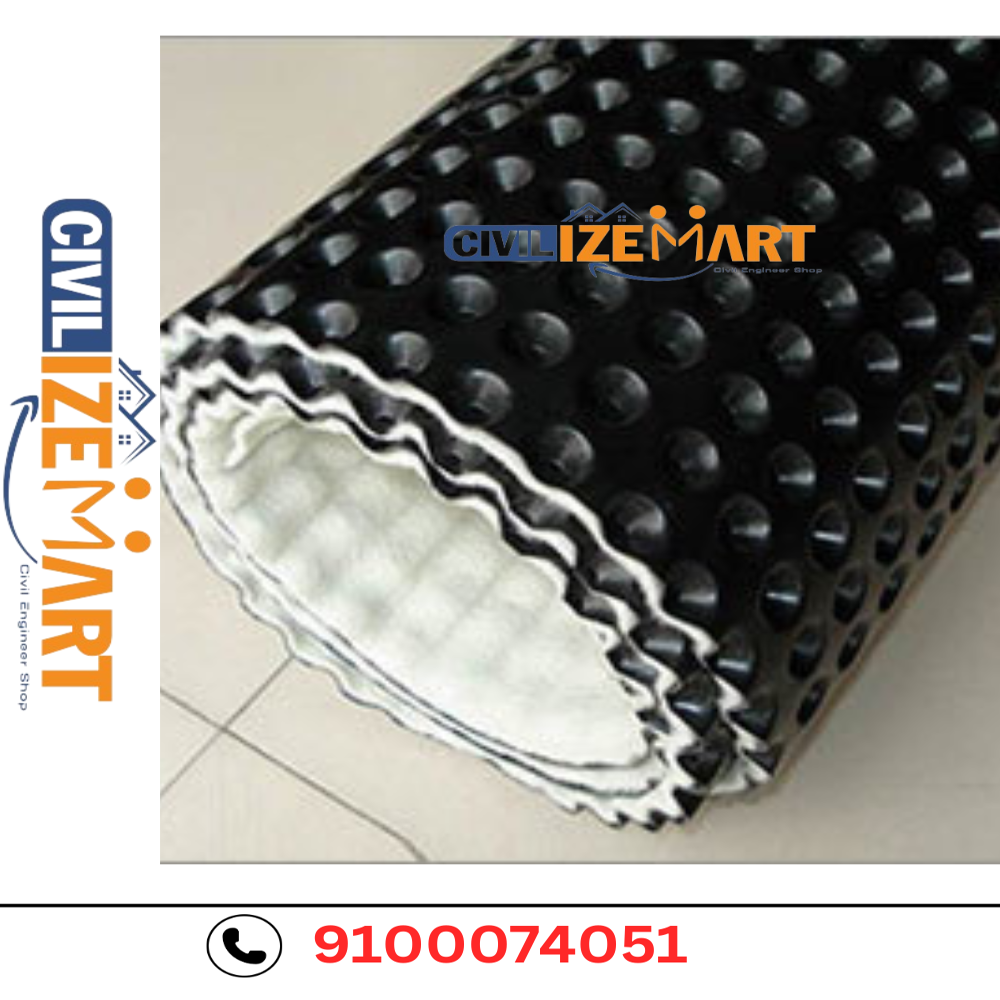

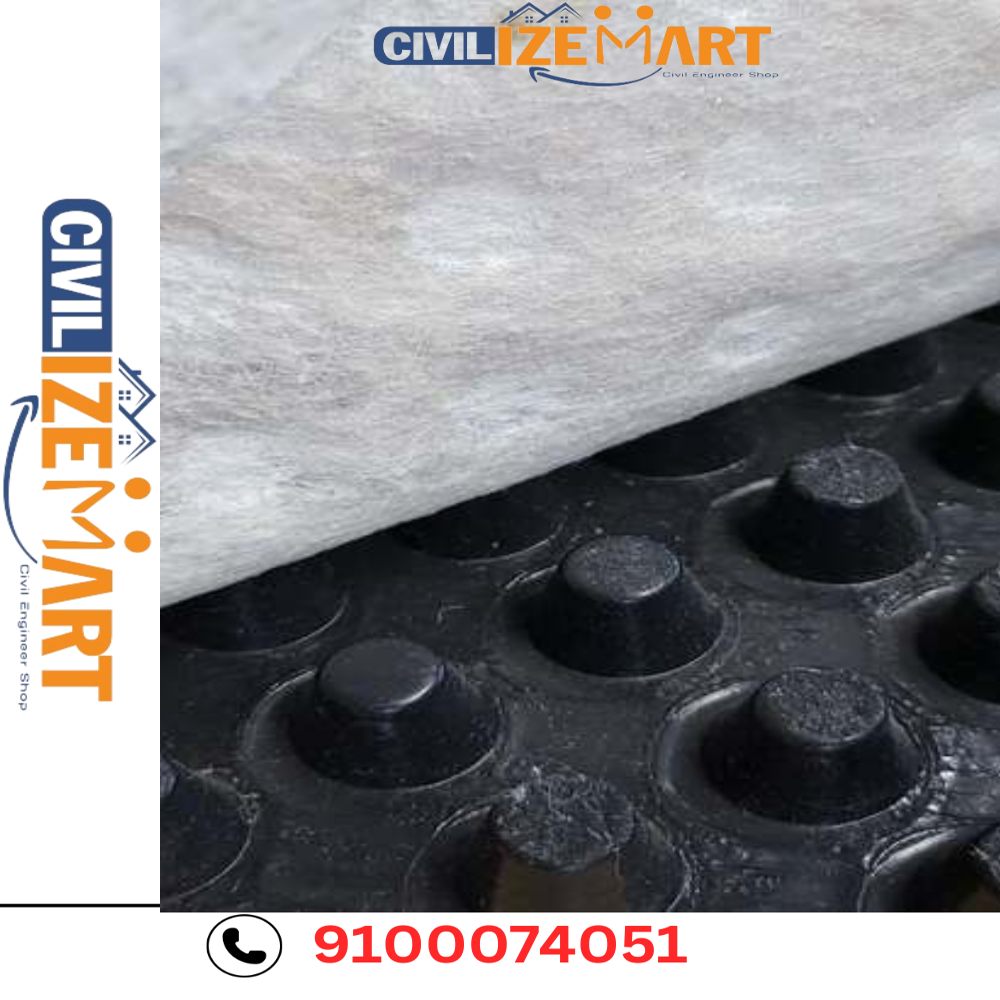

91 000 74051 Geotextile Dimple Board (VTD08-PLUS) is a high-performance, durable, and lightweight drainage solution made from high-density polyethylene (HDPE) with a non-woven geotextile layer. Its specifically designed to protect waterproof membranes in basements and other underground structures, ensuring long-lasting protection from moisture and soil pressure.
Key Features:Durable & Lightweight: Made from HDPE with an attached non-woven geotextile, this board is both strong and easy to handle.Waterproof & Vapor-Proof: Impermeable to water and moisture, protecting waterproof membranes.Dimple Design: 8mm high dimples create an air gap, preventing moisture from reaching walls and allowing them to breathe.Cost-Effective & Quick Application: A fast, low-cost solution for waterproofing protection that reduces time and effort.
How to Use:Vertical Application (Walls): Attach the dimple board to the wall, ensuring the dimples face the wall. Overlap joints by at least 20 cm. Secure with hot air welding or insulated tape.Horizontal Application (Ground): Lay the board on the ground, with dimples facing down. Overlap joints by at least 30 cm and secure using welding or tape.Optimal Application Temperature: +5C to +30C
Advantages:Effective Waterproofing: The dimple design keeps moisture away from the waterproof membrane and allows air circulation, reducing the risk of damage.Pressure Protection: Protects underground waterproofing from pressure caused by soil.Fast & Easy Installation: Quick to install with simple overlap and welding/taping methods.Applications:Basement WallsMetro/Train TunnelsRoads & HighwaysParking AreasDams & PipelinesTerrace Gardens
VTD08-PLUS is ideal for use in drainage systems, soil protection, and creating moisture barriers for concrete, making it a versatile solution for a variety of underground applications.

Comprehensive Waterproofing

Dimple Board with Geotextile offers superior protection for underground and exposed surfaces. Its unique structure directs water away from critical areas, minimizing moisture infiltration and prolonging structural lifespan. Commonly installed behind basement walls or beneath green roofs, this solution ensures effective barrier performance.

Efficient Drainage Solution

The integration of dimple board and geotextile fabric promotes quick water drainage while protecting surfaces from soil and debris. This hybrid technology is particularly valuable in areas susceptible to heavy rainfall or groundwater presence, making it ideal for retaining walls, tunnels, and drainage systems throughout India.

FAQ's of DIMPLE BOARD WITH GEOTEXTILE:

Q: How is Dimple Board with Geotextile installed for basement waterproofing?

A: Installation typically involves placing the dimpled board with attached geotextile fabric against the basement exterior before backfilling. The dimples face outward to create a drainage channel, while the geotextile prevents soil particles from clogging the drainage path, ensuring long-term moisture protection.

Q: What are the main applications of Dimple Board with Geotextile?

A: This product is widely used in basement waterproofing, retaining wall protection, tunnel linings, green roof systems, and comprehensive drainage solutions. It is suitable for both residential and commercial projects where water management and foundation safety are priorities.

Q: When should Dimple Board with Geotextile be used in construction projects?

A: It is best used during early structural work, prior to soil backfill, especially in projects with high moisture risk-such as basements, retaining walls, tunnels, green roofs, and other areas needing reliable drainage and waterproofing.

Q: Where can Dimple Board with Geotextile be sourced in India?

A: This product is available through various distributors, service providers, suppliers, and traders across India. It can be procured locally for projects of different scales, ensuring ready accessibility and support.

Q: What is the process involved in using Dimple Board with Geotextile for green roof systems?

A: For green roofs, the dimple board with geotextile is laid over the waterproofing membrane, providing an effective drainage layer. The dimples enable water flow towards designated outlets while the geotextile protects the drainage layer from root intrusion and sediment clogging.

Q: What benefits does Dimple Board with Geotextile offer over traditional drainage methods?

A: Compared to conventional solutions, this product delivers superior drainage efficiency, reduces maintenance, and protects structures from water damage. Its durability and ease of installation make it a preferred choice for modern waterproofing and drainage requirements.
