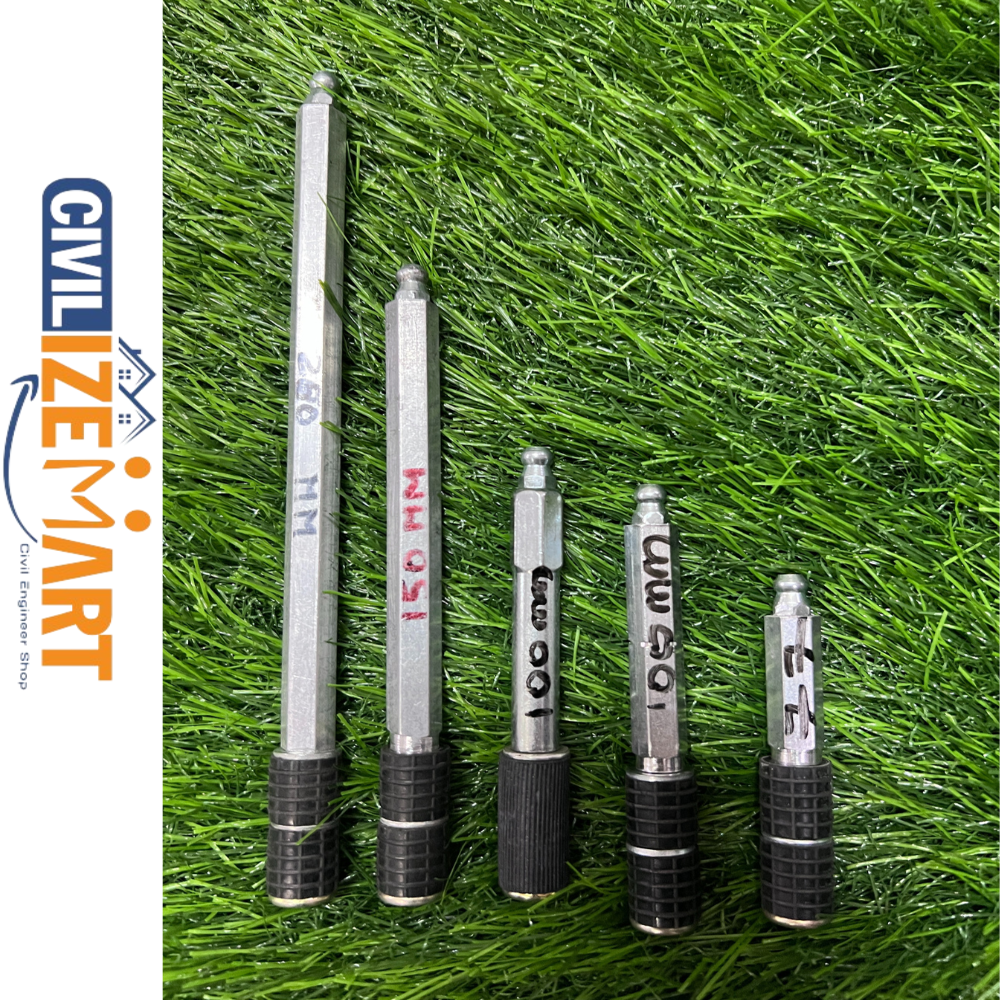

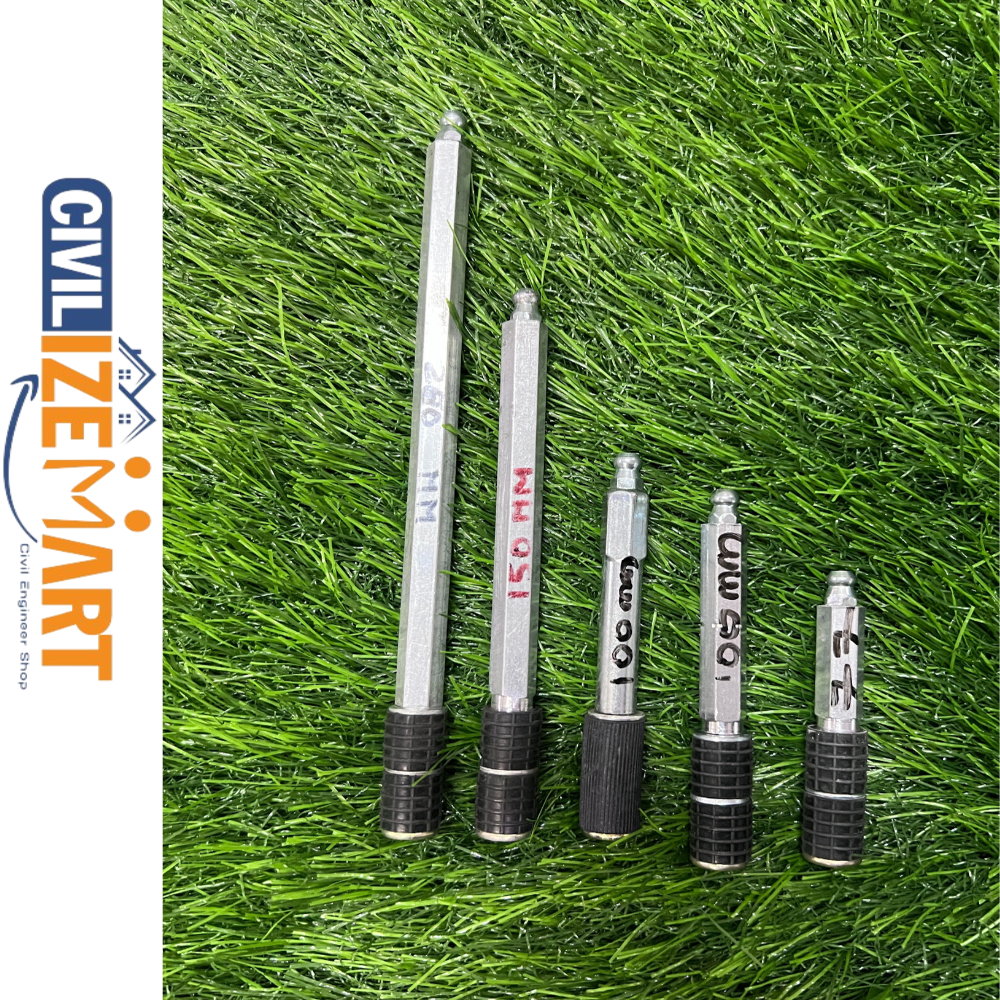

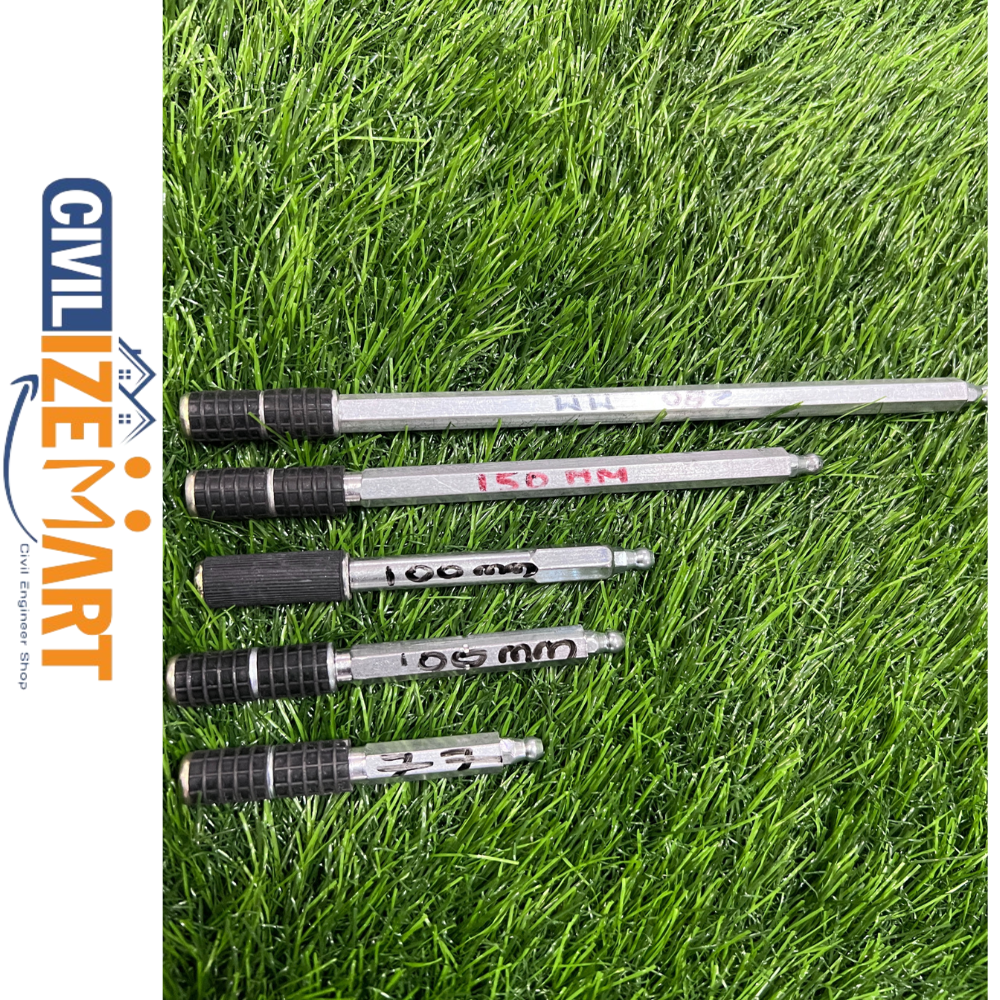

ALUMINUM INJECTION PACKERS -CIVILIZEMART

Name: ALUMINUM INJECTION PACKERS -CIVILIZEMART
Brand: CIVILIZE MART
Price: 19.0 INR
Availability: InStock

Price 19.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALUMINUM INJECTION PACKERS -CIVILIZEMART Specification

Reusable
No

Color
Silver

Installation Method
Hammer-in application

Diameter
10 mm, 13 mm, 16 mm

Corrosion Resistance
High

Material
Aluminum

Standard Compliances
IS and ASTM standards applicable

Finishing
Polished

Head Type
Grease nipple/Zerk fitting

Pressure Resistance
Up to 400 bar

Length
50 mm, 75 mm, 100 mm, 150 mm, 200 mm

Surface Type
Suitable for wet and dry surfaces

Temperature Range
-10°C to 60°C

Seal Type
Rubber gasket inbuilt

Packaging Type
Box packing

Usage
Epoxy/PU grouting

Application
Injection grouting in concrete structures

ALUMINUM INJECTION PACKERS -CIVILIZEMART Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
1 Days

About ALUMINUM INJECTION PACKERS -CIVILIZEMART

91 000 74051 Injection packers are ports or fittings inserted into drilled holes in concrete, masonry or other structural elements so that injection materials (epoxy, polyurethane, acrylate gels etc.) can be pumped into cracks, voids, or joints. They act as sealed access points so the injection grout or resin enters the structure under pressure without escaping.
Important Specifications / What to ChooseDiameter of packer: depends on how much flow you need and what crack size / pressure. Common diameters ~ 6 mm, 10 mm, 13 mm, 16 mm etc. Length / Shaft length: Longer packers help in weak or deteriorated concrete so they grip well in the hole without blowing out. Short ones are fine for shallow cracks. Valve type / fitting type: Zerk type vs Button-Head vs Anti-Return Valve. Anti-return valves help prevent backflow and ease multiple injections. Button-head or flat-head help with fast hose connection. Material strength & corrosion resistance: Steel gives high strength and good pressure resistance; aluminum/brass cheaper; plastic lighter. Choose depending on environment and pressure.
Q. What diameter should I choose? Depends on volume / flow and crack/void size; 10-13 mm common for concrete crack injection.Q. Can these packers be reused? Some metal packers may be reusable; plastic ones often single use.Q. What injection materials can be used? Epoxy, PU, acrylate, silicate etc. Check compatibility with valve and packer material.Q. How to finish after injection? Pull out or break off the packer stem if needed, seal hole with patch repair mortar.

Ideal Solution for Concrete Injection Grouting

Designed for use with epoxy and PU grouting, these injection packers provide a secure and efficient pathway for material delivery into concrete structures. Their sturdy aluminum construction, paired with built-in rubber gaskets, ensures high-pressure resistance and minimizes the risk of leakage-even under demanding conditions.

Versatile and Durable Construction

CIVILIZEMART aluminum injection packers are available in various diameters and lengths, allowing greater flexibility for different project requirements. Highly resistant to corrosion and temperature variations, these packers maintain their structural integrity and deliver consistent results over a wide range of surface conditions.

FAQ's of ALUMINUM INJECTION PACKERS -CIVILIZEMART:

Q: How are aluminum injection packers installed in concrete structures?

A: Aluminum injection packers are installed using a hammer-in application method. The packer is positioned in a pre-drilled hole in the concrete, then hammered in until the rubber gasket creates a tight seal. The grease nipple/Zerk fitting head allows for straightforward connection to injection equipment.

Q: What are the primary benefits of using CIVILIZEMART aluminum injection packers?

A: These packers offer high corrosion resistance, a robust seal with an inbuilt rubber gasket, and pressure resistance up to 400 bar. Their versatility across different temperatures and suitability for both wet and dry surfaces make them highly reliable for injection grouting projects.

Q: When should these injection packers be used during a construction or repair process?

A: Aluminum injection packers are typically used during the structural repair phase, after cracks or voids are identified within concrete. They serve as essential conduits for injecting grouting materials to reinforce or waterproof affected areas.

Q: Where can these packers be applied?

A: They are suitable for use in a range of concrete structures, including basements, tunnels, bridges, and water tanks-essentially anywhere injection grouting is necessary to strengthen, repair, or waterproof concrete.

Q: What standards do these injection packers comply with?

A: CIVILIZEMART aluminum injection packers meet IS and ASTM standards, ensuring they adhere to recognized benchmarks for quality, safety, and performance in construction materials.
